BASO

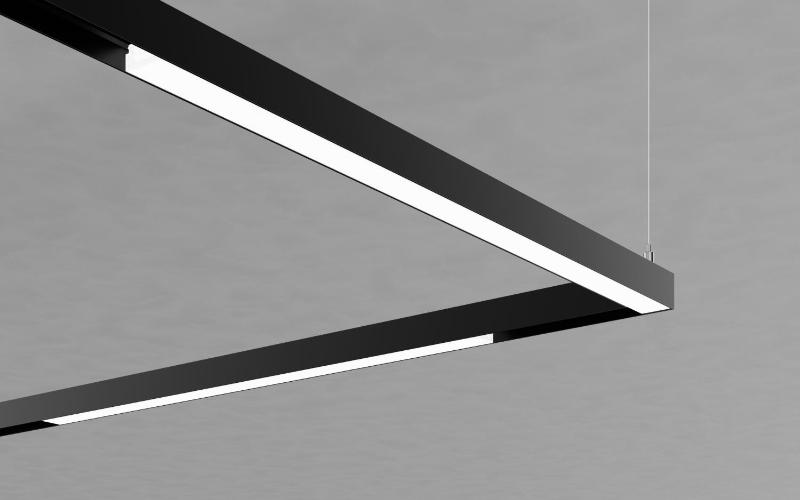

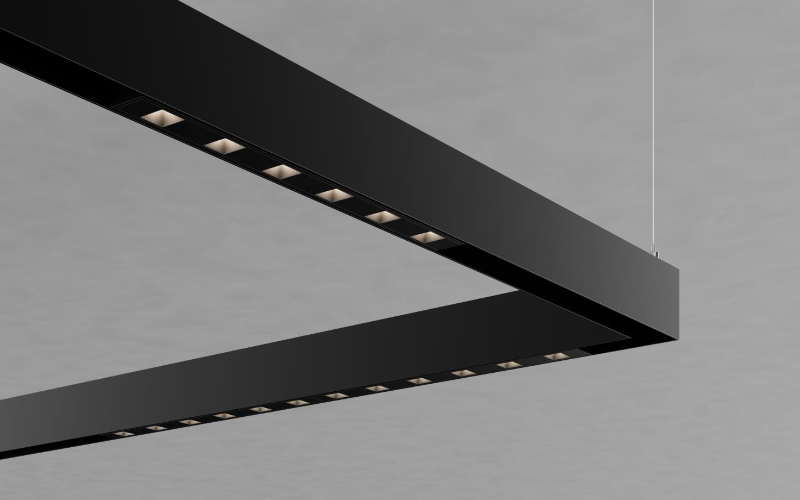

M-LINE LINEAR.
 Configure
 Add to project
DESCRIPTION
The sleek M-LINE has revolutionized channel systems. No tools are required as insets are installed using magnets, which gives you the flexibility to combine them in a variety of ways. Trimless installation and the streamlined spots make for an especially elegant system. The patented slider makes adjusting the beam angle easy so that you can highlight objects just the way you want them. Maximum light quality, outstanding in every detail.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 1"
    L: 1 Ft2 Ft4 Ft8 Ft
    H: 3/4"1 3/4"
  • Light Source
    LED
  • CCT/Color
    2700K3000K3500K4000K
  • CRI
    90
  • Watt(Approx)
    6 W/Ft7.2 W/Ft
  • Lumens(Approx)
    350 Lm/Ft390 Lm/Ft450 Lm/Ft500 Lm/Ft480 Lm/Ft510 Lm/Ft530 Lm/Ft
  • Optics
    DirectGrazingFloodGeneral DiffusedAsymmetric/WashBatwing
  • Adjustable
  • Dimming
    Dim to 1%0-10V
  • Controls/Network
  • Power/Voltage
    Remote
  • Integral Emergency
  • Lumen Maintenance
  • Certificates
    UL/CULT24*RoHSBAA
  • Environment
  • Mounting Type
    Track/BuswayMagnetic System
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
