Birchwood Lighting (Leviton)
ERI-LED-DR/IN. ERIKA DR/IN LEDDynamic Geometrics Dual Directional.
Configure
Add to project
RESOURCES
DESCRIPTION

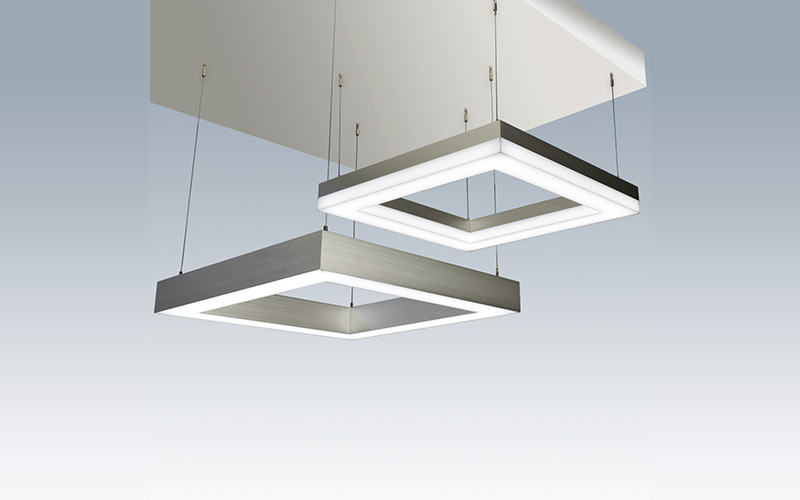

ERIKA’s lean and modern design can be specified in either direct or direct/indirect square or rectangular shapes constructed of 1.25", 2.25" or 3.25” mitered extruded aluminum. New 1.25" round profile is also available. Extruded acrylic lenses deliver Direct (Flush lens), 3/8" Drop (Reveal lens) or Diffused (Tri-side lens) illumination, while integral dimming and battery pack options are also available for added lighting versatility.
Applications
Office, retail, hospitality, residential.
Mounting Options
Pendant, suspended, surface mounted.
Light Source
LED.
Other
Surface Mount option for direct fixtures, custom finishes available.
Applications
Office, retail, hospitality, residential.
Mounting Options
Pendant, suspended, surface mounted.
Light Source
LED.
Other
Surface Mount option for direct fixtures, custom finishes available.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2'3'4'L: 2'3'4'H: 2 3/4"5 1/8"5 1/2"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI90 80
- Watt(Approx)2.3 W/Ft4.7 W/Ft4.4 W/Ft3.5 W/Ft9 W/Ft7.1 W/Ftcustom
- Lumens(Approx)166 Lm/Ft249 Lm/Ft333 Lm/Ft439 Lm/Ft393 Lm/Ft499 Lm/Ft843 Lm/Ft756 Lm/Ftcustom
- OpticsDirectIndirectDirect/IndirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%0-10VDALILutron Hi-Lume 2-wire (LTEA)Lutron Hi-lume EcoSystem (LDE1)
- Controls/Network
- Power/VoltageIntegral120V277V347V
- Integral Emergency
- Lumen Maintenance
- CertificatesUL/CULMade in USA
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeERI-LED-DR-IN
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
