Birchwood Lighting (Leviton)

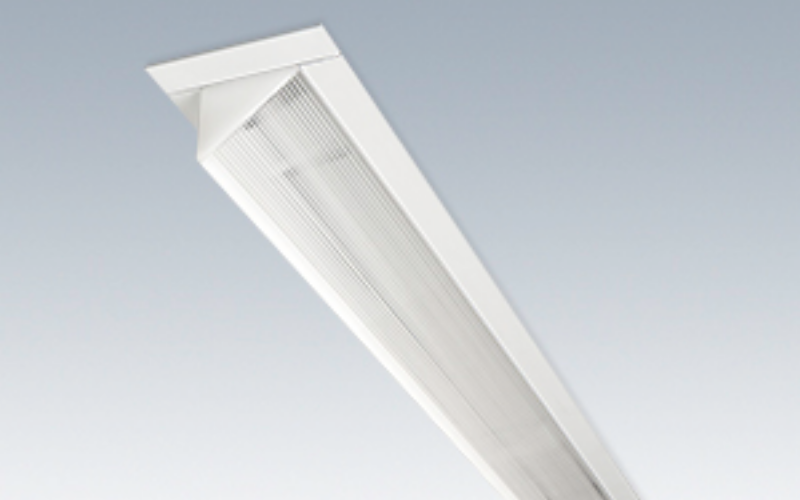

JIL-ASYM-LED-165. JILL LED 1.65” Asymmetric Drop Lens Trim/Trimless.
 Configure
 Add to project
Birchwood Lighting. JIL-ASYM-LED-165. JILL LED 1.65” Asymmetric Drop Lens Trim/Trimless.
Birchwood Lighting. JIL-ASYM-LED-165. JILL LED 1.65” Asymmetric Drop Lens Trim/Trimless.
RESOURCES
DESCRIPTION

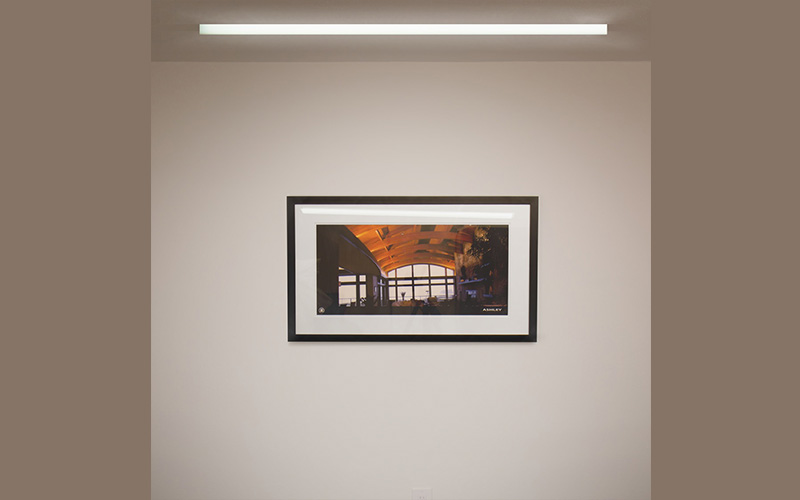

Minimal drop-lens recessed linear fixture offering Trim or Trim-less mounting in T-Grid or drywall.

Available in 2', 3', 4', 6' and 8' nominal lengths, continuous run available

Applications
Office, retail, restaurants, residential, corridors, institutional, ADA.

Mounting Options
Recessed - Mud in, Trim, T-Grid

Light Source
LED

Other
Heavy gauge extruded aluminum housing, extruded Asymmetric acrylic lens white linear prismatic asymmetric optic.
Country Of Origin: United States
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 1 5/8"3 1/8"
    L: 2 Ft3 Ft4 Ft6 Ft8 FtRun length (Ft)
  • Light Source
    LED
  • CCT/Color
    2700K3000K3500K4000K
  • CRI
    80
  • Watt(Approx)
    2.9 W/Ft5.9 W/Ftcustom
  • Lumens(Approx)
    301 Lm/Ft600 Lm/Ftcustom
  • Optics
    DirectAsymmetric/Wash
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%Non-Dim0-10VDALILutron Hi-Lume 2-wire (LTEA)Lutron Hi-lume EcoSystem (LDE1)Lutron EcoSystem 5 (LDE5)
  • Controls/Network
  • Power/Voltage
    Integral120V277V347V
  • Integral Emergency
    EM Integral
  • Lumen Maintenance
  • Certificates
    UL/CULMade in USA
  • Environment
    Damp
  • Mounting Type
    Ceiling RecessedDrywallTrimless DrywallWoodTrimless Wood
  • Housing
    ICChicago Plenum
  • Housing Depth
    3 15/16 ''
