Brownlee Lighting
1454. LUMIBOX.
Configure
Add to project
RESOURCES
DESCRIPTION

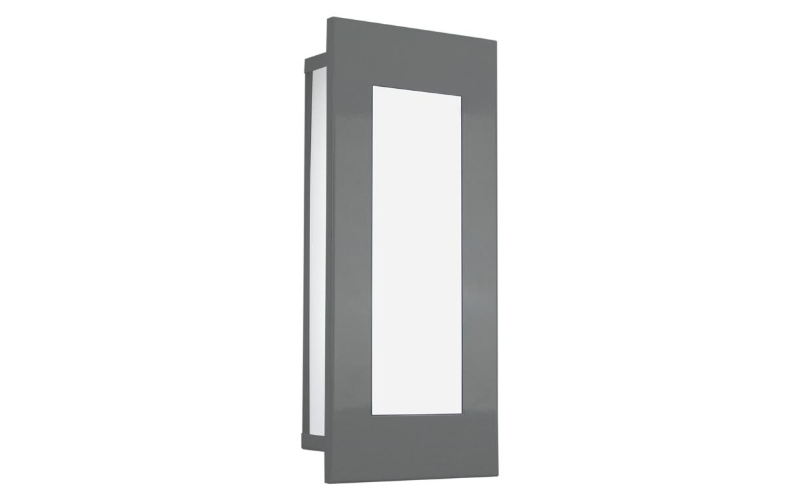

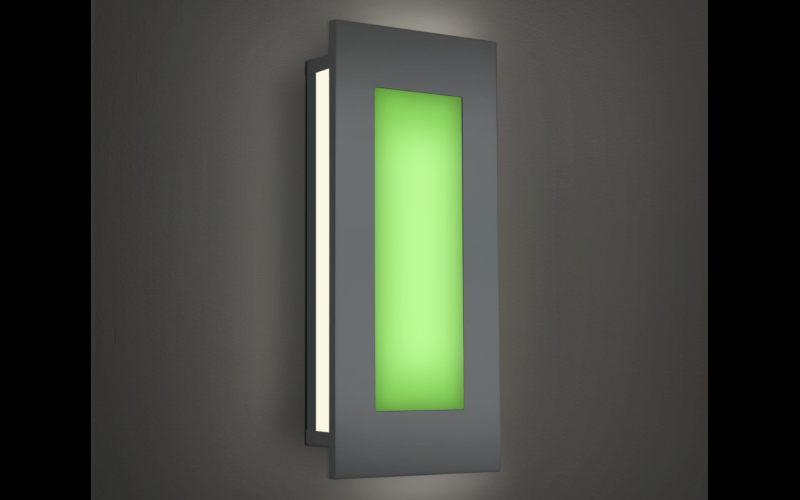

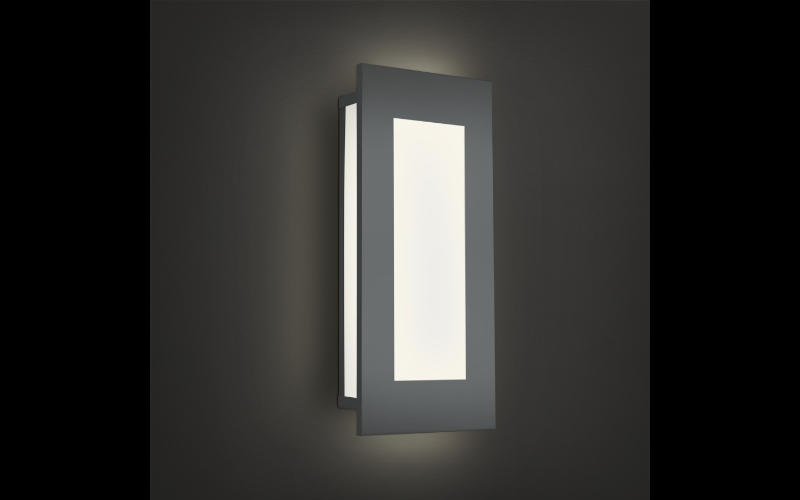

This unit is offered in two sizes and can be mounted vertically or horizontally. White acrylic window pane diffuser design allows for light output in all directions. Offered in all Brownlee paint finishes as standard. Custom finishes available.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3"L: 6.5"8"H: 15"27"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI90 82
- Watt(Approx)6 W9 W12 W16 W23 W35 W
- Lumens(Approx)548 Lm764 Lm1084 Lm1566 Lm2148 Lm4380 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Non-DimTRIAC/Forward/Leading0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V
- Integral Emergency
- Lumen Maintenance100000 h
- CertificatesCSAADAT24*Energy Star*BAA
- EnvironmentDamp
- Mounting TypeWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead time1454-LED
