Brownlee Lighting
2640. OUTLINE PENDANT.
Configure
Add to project
RESOURCES
DESCRIPTION

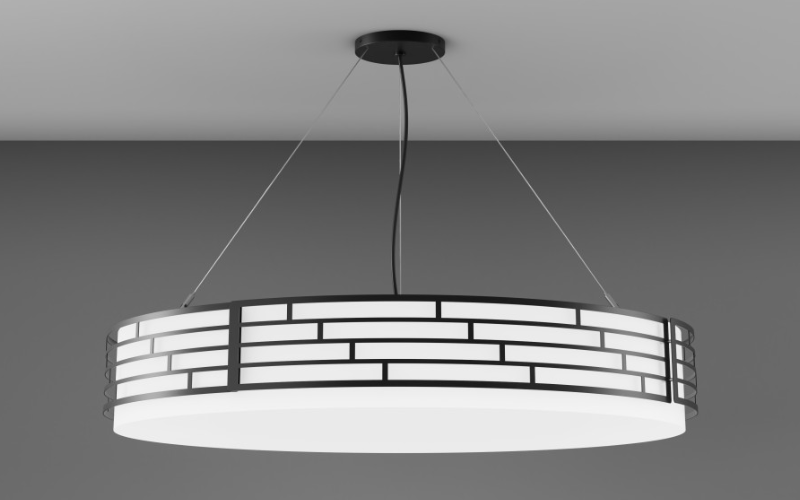

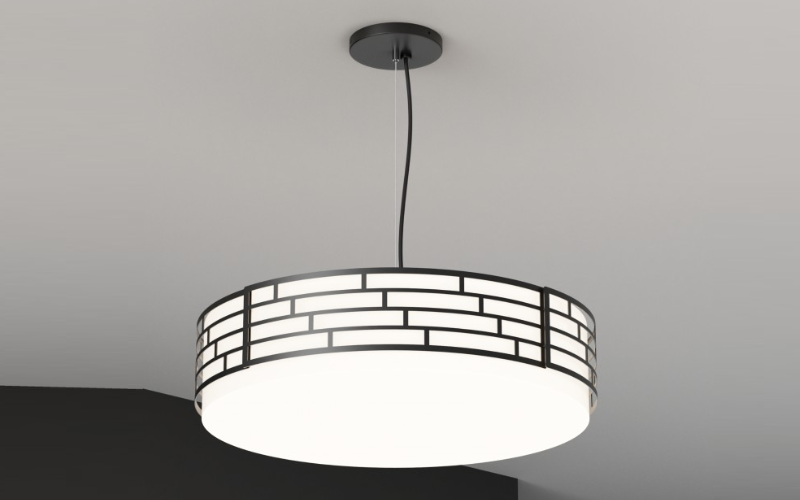

The Outline series is constructed of a low-profile white acrylic drum, with four laser cut cold rolled steel decorative trim pieces assembled to its outer wall. LED assembly (housing) covers the entire top surface of the drum to minimize dust/debris entry. Perfect for open office layouts, conference rooms, schools/libraries, hotel common areas, and more.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 26.125"38.125"50.125"L: 26.125"38.125"50.125"H: 6"
- Light SourceLED
- CCT/Color3000K3500K4000K
- CRI90
- Watt(Approx)30 W63 W70 W136 W110 W215 W
- Lumens(Approx)3850 Lm6690 Lm7525 Lm11970 Lm15045 Lm23945 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%TRIAC/Forward/Leading0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V
- Integral EmergencyEM Integral
- Lumen Maintenance100000 h
- CertificatesCSA
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead time2640-LED
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
