BYIBA Light (Gordon Bullard)
BY-4247S-9010. MINILED DO (ceiling recessed).
 Configure
 Add to project

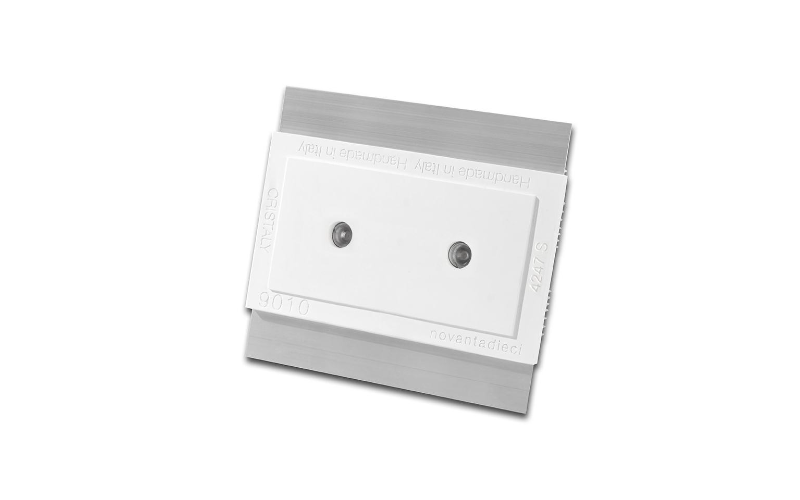

BYIBA Light. BY-4247S-9010. MINILED DO (ceiling recessed).
BYIBA Light. BY-4247S-9010. MINILED DO (ceiling recessed).
BYIBA Light. BY-4247S-9010. MINILED DO (ceiling recessed).
RESOURCES
DESCRIPTION

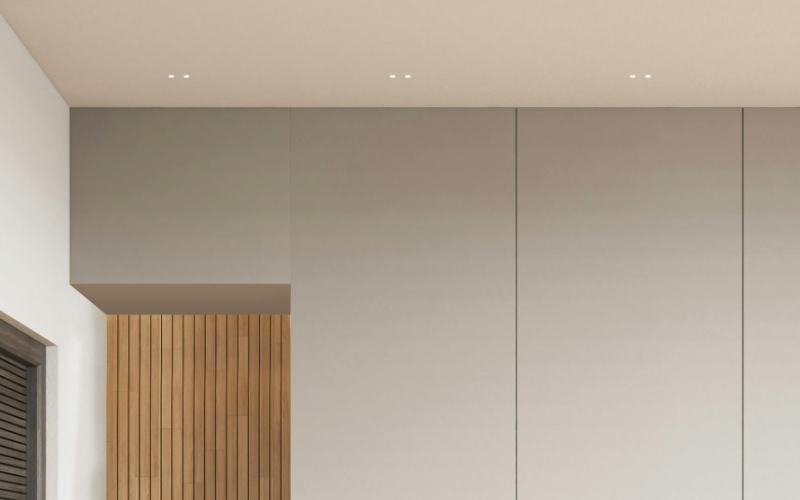

The MINILED DO is a sophisticated recessed LED module that brings rhythm and precision to modern ceilings.

Its clean rectangular form with dual light points creates a subtle play of light and shadow while remaining visually understated.

Designed with Italian craftsmanship and premium materials, it delivers controlled, glare-free illumination with architectural elegance.

Perfect for residential and commercial interiors, the MINILED DOM transforms functional lighting into a quiet yet expressive design detail.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 4.3"
    L: 7.68"
  • Light Source
    LED
  • CCT/Color
    2700K3000K4000K
  • CRI
    90
  • Watt(Approx)
    8 W12 W17 W
  • Lumens(Approx)
    930 Lm960 Lm990 Lm1290 Lm1320 Lm1350 Lm1670 Lm1700 Lm1730 Lm
  • Optics
    DirectMediumFloodWide Flood
  • Adjustable
  • Dimming
    Dim to 3-10%Non-Dim0-10VDALI
  • Controls/Network
    Lutron®Casambi
  • Power/Voltage
    RemoteUNV 120-277V
  • Integral Emergency
  • Lumen Maintenance
  • Certificates
    ETL
  • Environment
  • Mounting Type
    Ceiling RecessedDrywall
  • Housing
    Fixture
  • Housing Depth
    0.78 ''
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
