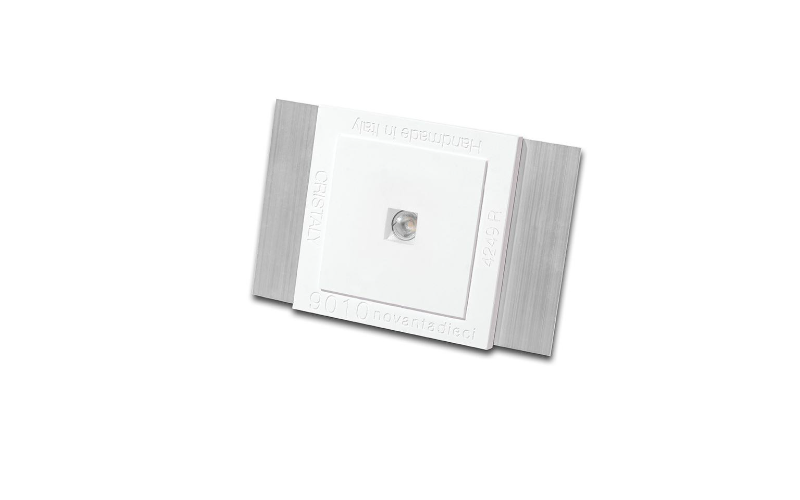

BY-4249R-9010. MINILED QUADRO (ceiling recessed).
Configure
Add to project



RESOURCES
DESCRIPTION
The MINILED QUADRO is a sleek recessed LED lighting module that merges contemporary design with efficient, accent-ready illumination for refined interior environments.
Its minimalist square form and compact profile offer seamless integration into ceilings with a clean, architectural presence.
Crafted with quality materials and precise engineering, this fixture delivers smooth, glare-controlled light ideal for highlighting pathways, hallways, or feature areas.
Perfect for both residential and commercial spaces, the 4249R elevates subtle lighting into a thoughtfully designed functional element.
Its minimalist square form and compact profile offer seamless integration into ceilings with a clean, architectural presence.
Crafted with quality materials and precise engineering, this fixture delivers smooth, glare-controlled light ideal for highlighting pathways, hallways, or feature areas.
Perfect for both residential and commercial spaces, the 4249R elevates subtle lighting into a thoughtfully designed functional element.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4.3"L: 7.08"
- Light SourceLED
- CCT/Color2700K3000K4000K
- CRI90
- Watt(Approx)4 W6 W8.5 W11 W
- Lumens(Approx)450 Lm480 Lm510 Lm630 Lm660 Lm690 Lm820 Lm850 Lm880 Lm1020 Lm1050 Lm1080 Lm
- OpticsDirectMediumFloodWide Flood
- Adjustable
- DimmingDim to 3-10%Non-Dim0-10VDALI
- Controls/NetworkLutron®Casambi
- Power/VoltageRemoteUNV 120-277V
- Integral Emergency
- Lumen Maintenance
- CertificatesETL
- Environment
- Mounting TypeCeiling RecessedDrywall
- HousingFixture
- Housing Depth1.18 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
