BYIBA Light (Gordon Bullard)
BY-DRMB-AC. DRUM MOON (acoustic lighting).
Configure
Add to project
RESOURCES
DESCRIPTION

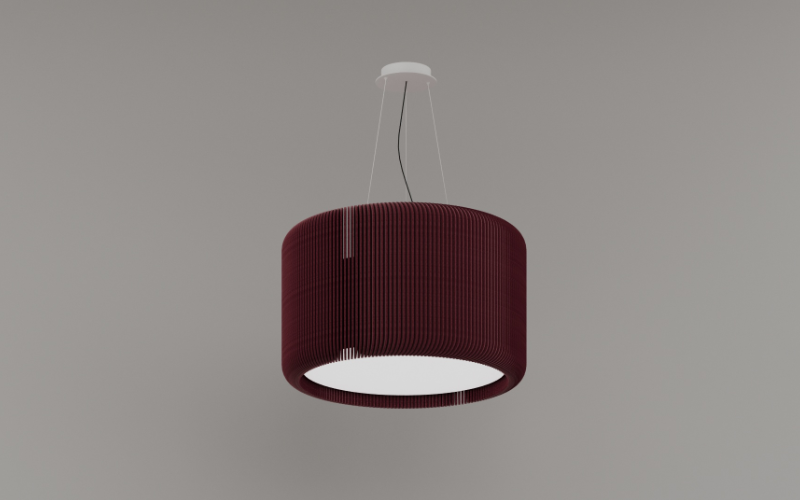

The Drum Moon Acoustic Pendant is designed with multiple acoustic felt fins for superior sound absorption, making it ideal for large open spaces such as meeting rooms, airports, and hotels.
Its drum shape is available in three diameter options (27.5”, 39.4”, and 51.2”) and two height choices (12.24” and 24.24”), providing flexibility for high-ceiling installations with options for aircraft cable or stem suspension.
Equipped with an LED light source, it offers CCT settings of 3000K, 3500K, or 4000K and a CRI of 80 or 90.
The fixture comes in 35 acoustic felt colors, with dimming options including non-dimmable and 0-10V, ensuring adaptability across various environments.
Its drum shape is available in three diameter options (27.5”, 39.4”, and 51.2”) and two height choices (12.24” and 24.24”), providing flexibility for high-ceiling installations with options for aircraft cable or stem suspension.
Equipped with an LED light source, it offers CCT settings of 3000K, 3500K, or 4000K and a CRI of 80 or 90.
The fixture comes in 35 acoustic felt colors, with dimming options including non-dimmable and 0-10V, ensuring adaptability across various environments.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 25.5"39.4"35.4"L: 25.5"39.4"35.4"H: 12"24"
- Light SourceLED
- CCT/Color3000K3500K4000K
- CRI80 90
- Watt(Approx)40 W90 W180 W
- Lumens(Approx)3400 Lm7650 Lm15300 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Non-Dim0-10VDALI
- Controls/NetworkLutron®Wireless DimmingCasambi
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance
- CertificatesETL
- EnvironmentAcoustic AbsorptionDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeBY-DRMB-AC
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
