BYIBA Light (Gordon Bullard)
BY-TRN-AC. TRIANGLE (acoustic lighting).
Configure
Add to project
RESOURCES
DESCRIPTION

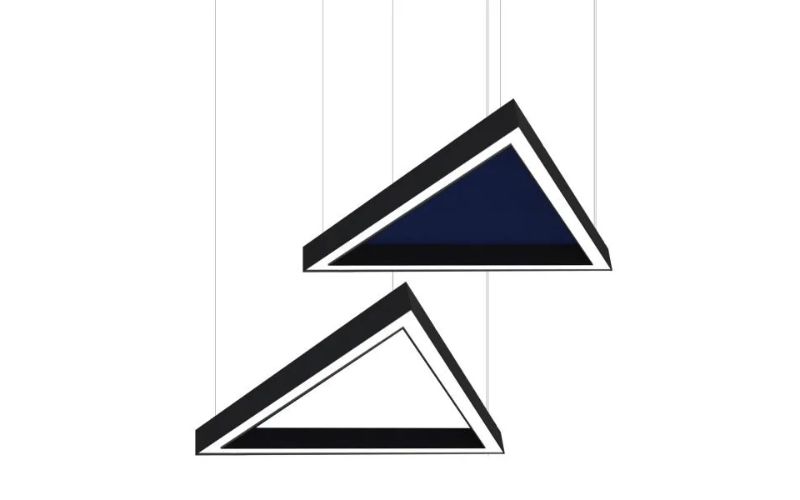

The BYIBA Triangle (BY-TRN-AC) is a modern acoustic lighting fixture designed to enhance both aesthetics and functionality in contemporary spaces.
Featuring an aluminum body with a polyester fiber acoustic panel, it effectively reduces noise while providing high-performance LED illumination.
Available in multiple sizes, color temperatures, and acoustic felt finishes, this fixture offers customizable options to complement any interior design.
With a CRI of 90, wide 120° light distribution, and dimming capabilities.
Featuring an aluminum body with a polyester fiber acoustic panel, it effectively reduces noise while providing high-performance LED illumination.
Available in multiple sizes, color temperatures, and acoustic felt finishes, this fixture offers customizable options to complement any interior design.
With a CRI of 90, wide 120° light distribution, and dimming capabilities.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 16.4"20.5"30.7"40.9"L: 14.2"17.7"26.57"34.43"H: 2.95"3.1"
- Light SourceLED
- CCT/Color3000K3500K4000K5000K
- CRI90
- Watt(Approx)25 W40 W90 W180 W
- Lumens(Approx)2625 Lm4200 Lm9450 Lm18900 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Non-Dim0-10VDALI
- Controls/NetworkLutron®EthernetCasambi
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance
- CertificatesETL
- EnvironmentAcoustic AbsorptionDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeLL0188
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
