Color Kinetics (Genlyte Solutions)

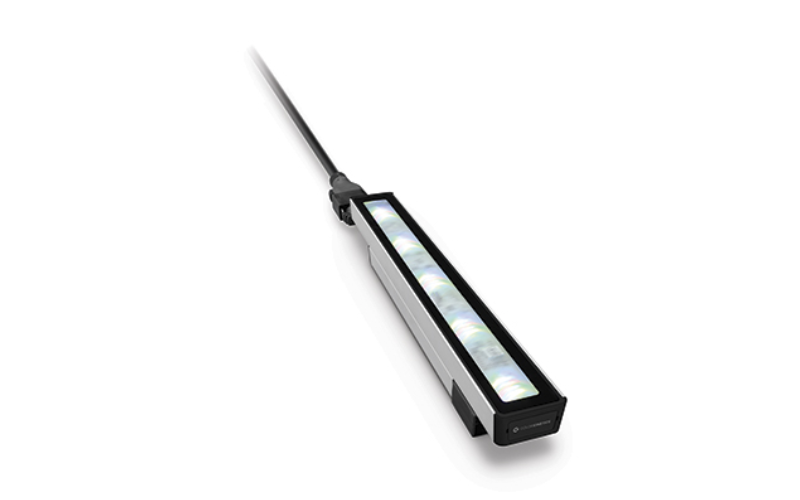

Graze Compact Powercore gen2, IntelliHue.
Configure
Add to project




RESOURCES
DESCRIPTION
Graze Compact is a high-performance, exterior linear luminaire designed to highlight architectural features like molding details, archways and windows up to two stories high. Graze Compact IntelliHue utilizes Color Kinetics IntelliHue technology to produce millions of saturated colors, pastels, and high-quality white light, in the same precisely controllable luminaire. Multiple luminaire lengths and beam angles support a large range of façade or surface illumination applications. The brand new low-profile housing, connectorized cabling, a universal power input range, and direct line voltage make Graze Compact luminaires easy to install and operate.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1.66"L: 12.06"24.06"36.06"48.06"H: 1.77"
- Light SourceLED
- CCT/ColorRGBW
- CRI90
- Watt(Approx)4.3 W4.2 W8.9 W8.4 W8.2 W8.6 W8.5 W12.6 W12.7 W17.2 W16.8 W16.4 W16.9 W26.7 W25.2 W24.6 W35.6 W33.6 W32.8 W
- Lumens(Approx)184 Lm194 Lm195 Lm209 Lm489 Lm483 Lm368 Lm388 Lm390 Lm418 Lm518 Lm502 Lm552 Lm736 Lm582 Lm585 Lm627 Lm978 Lm967 Lm776 Lm780 Lm836 Lm1467 Lm1036 Lm1004 Lm1450 Lm1956 Lm1554 Lm1506 Lm1933 Lm2072 Lm2008 Lm
- OpticsDirectGrazingWide Flood
- Adjustable
- DimmingDim to 3-10%DMX
- Controls/NetworkEthernet
- Power/VoltageIntegralPoEUNV 120-277V
- Integral Emergency
- Lumen Maintenance55000 h
- CertificatesUL/CUL
- EnvironmentIP66
- Mounting TypeSurface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeGRAZE-C-P-G2
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for detailsBUILD CATALOG NUMBER
