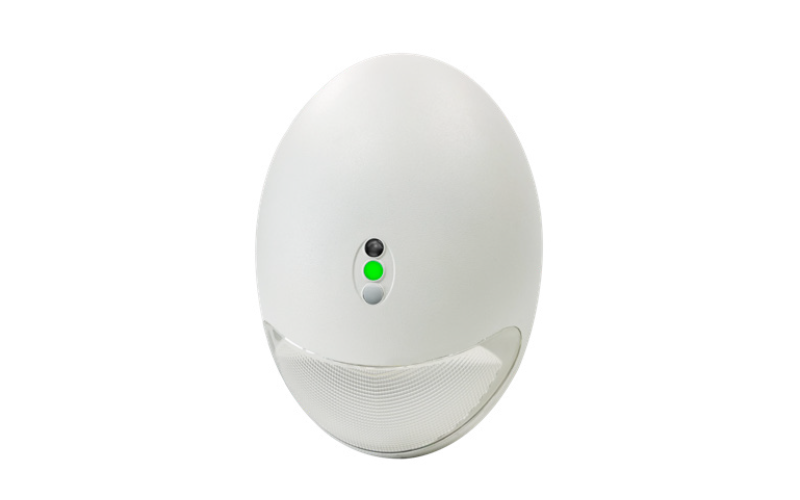

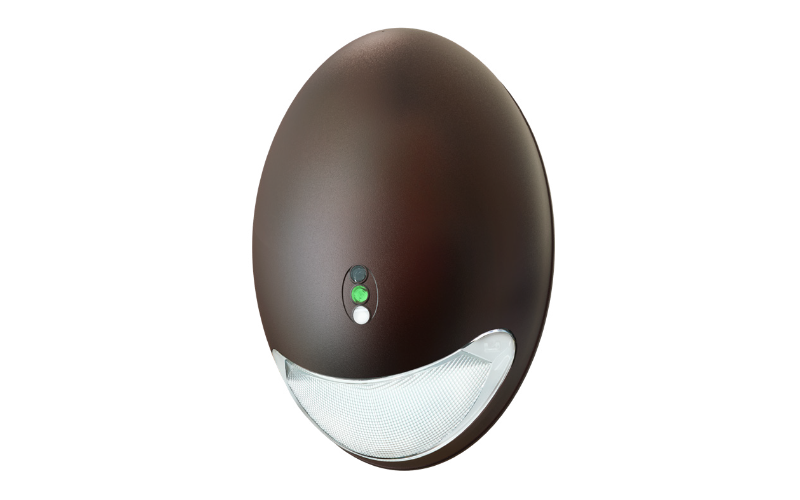

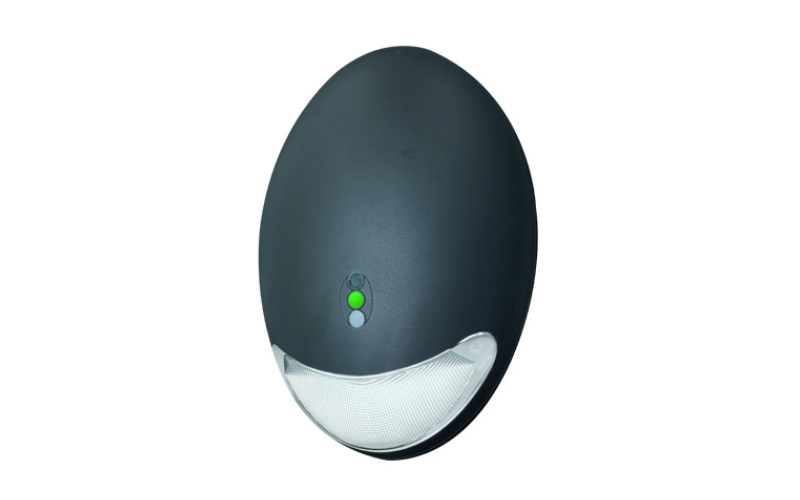

CUW2. INDOOR/OUTDOOR DECORATIVE LED AC/EMERGENCY WALLPACK.
Configure
Add to project
RESOURCES
DESCRIPTION
- Durable die-cast aluminum housing
- AC only or Emergency Models
- Emergency models include self-diagnostic/self-test feature to monitor proper operation
- Field selectable LED color temperature (3000K, 4000K, 5000K), 80 CRI
- Quick installation
- Universal 120-277VAC input, 60Hz
- Emergency models include a long-life 6.4V LiFePO4 battery for UL recognized 90 minute operation
- Full re-charge within 24 hours
- Photocell standard\
- UL924 Wet Location Listed, IP65
- -20°C to 50°C on AC only models, -30°C to 50°C on emergency models
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3 2/5"L: 6 1/12"H: 9 1/9"
- Light SourceLED
- CCT/ColorField Select CCT
- CRI80
- Watt(Approx)11.5 W
- Lumens(Approx)1350 Lm
- OpticsDirectSpot
- Adjustable
- DimmingDim to 3-10%0-10V
- Controls/NetworkIntegral Sensor
- Power/VoltageIntegralUNV 120-277V
- Integral EmergencyEM Integral
- Lumen Maintenance
- CertificatesCSA
- EnvironmentIP65
- Mounting TypeWall Surface
- Housing
- Housing Depth
