Corelite (Cooper Lighting Solutions)

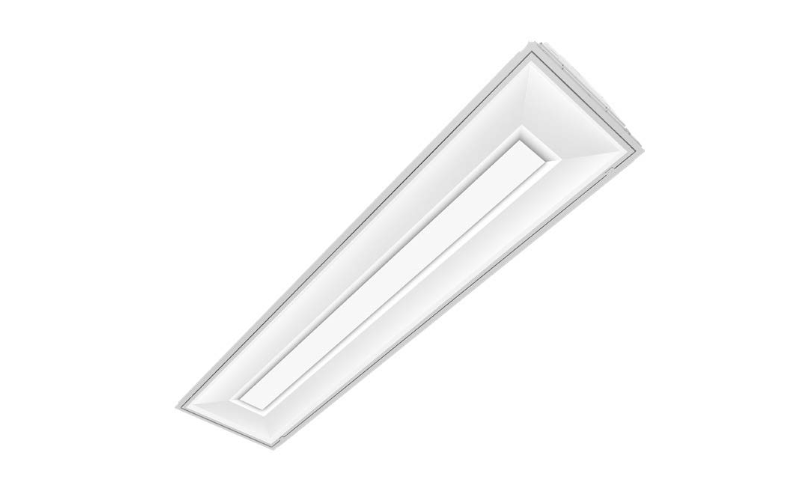

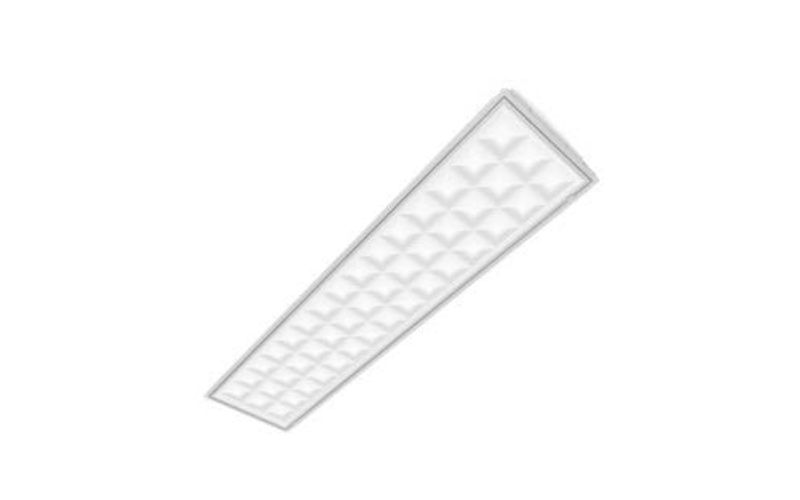

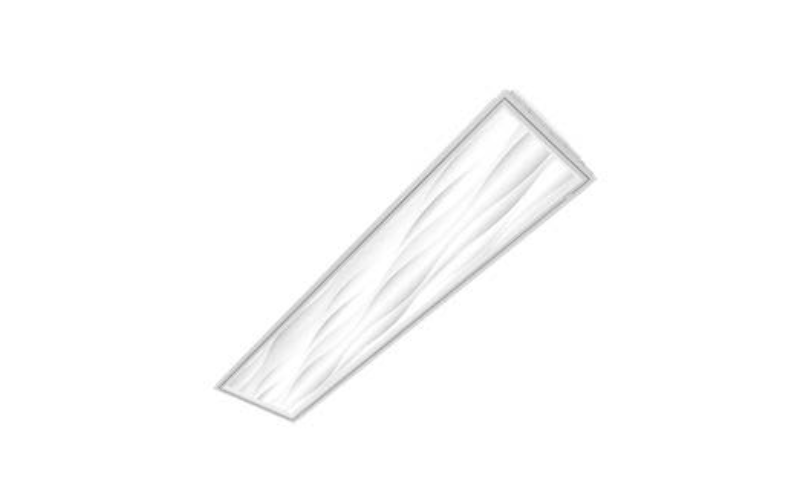

14PD. Perceive™ 1' x 4' Recessed LED.
Configure
Add to project
RESOURCES
DESCRIPTION
The Corelite Perceive PD series blends subtle styling with a proprietary optical system to provide comfortable illumination with a distinctive touch, featuring a robust doorframe allowing serviceability from below the plenum. Offered in 2x2, 2x4 and 1x4 sizes: The Perceive PD series provides a subtle, unique aesthetic adding visual interest to any space, while helping reduce glare.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1 FtL: 4 Ft
- Light SourceLED
- CCT/Color3000K3500K4000K5000K
- CRI80 90
- Watt(Approx)17.4 W22.7 W27 W31.8 W37.8 W42.9 W48.6 W54.1 W59.3 W71.2 W84.4 W
- Lumens(Approx)2003 Lm2556 Lm3027 Lm3526 Lm4057 Lm4547 Lm5076 Lm5557 Lm6097 Lm7049 Lm8151 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Step Dim0-10VDALILutron Hi-lume EcoSystem (LDE1)
- Controls/NetworkBluetoothWaveLinxIntegral Sensor
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance170000 h
- CertificatesUL/CULDLC*T24*RoHS
- EnvironmentDampHealthcare General
- Mounting TypeCeiling RecessedT-Grid Ceiling
- HousingICChicago Plenum
- Housing Depth5 3/4 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead time14PD-2
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
