Corelite (Cooper Lighting Solutions)

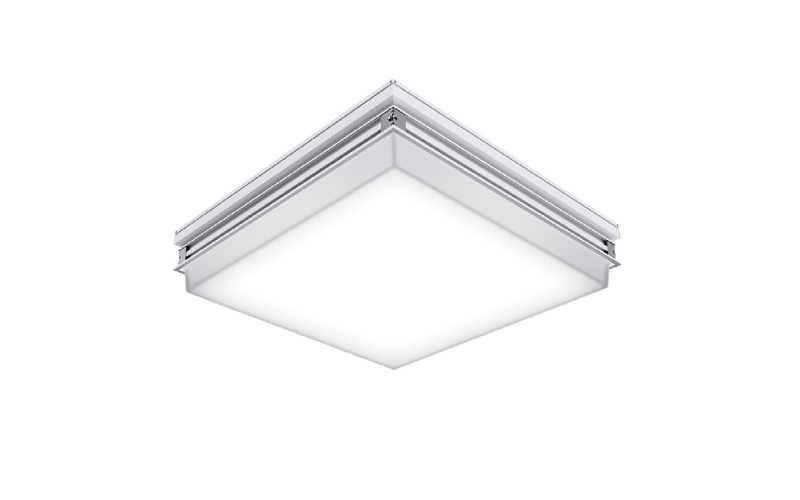

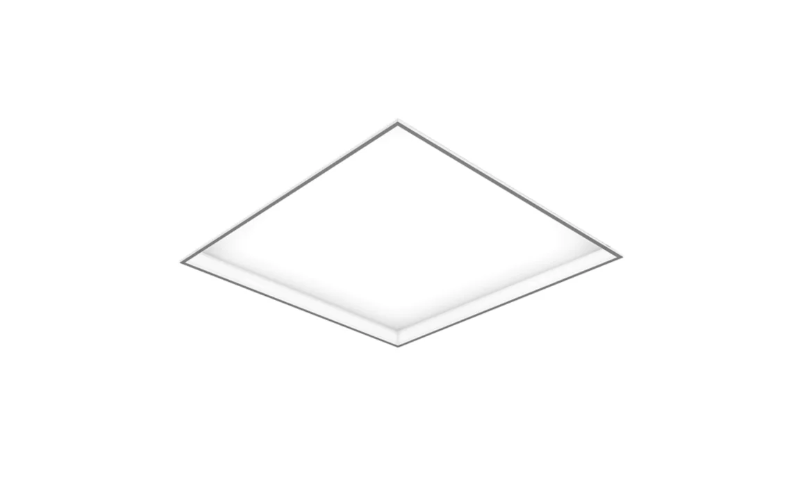

22ID2. InDepth 2.0 LED 1’ x 4’, 2’ x 2’, 2’ x 4’.
Configure
Add to project
RESOURCES
DESCRIPTION
The new generation of the InDepth 2.0 family improves the popular product line designed to create architectural ceiling topography with regressed and drop lens options. InDepth 2.0 offers design flexibility and versatility by providing a large variety of lens options. The regressed lenses provide optical cut off with reduced glare.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1 Ft2 FtL: 2 Ft4 Ft
- Light SourceLED
- CCT/Color3000K3500K4000K5000KTunable White
- CRI80 90
- Watt(Approx)18 W17 W22 W26 W30 W31 W35 W40 W39 W44 W49 W45 W43 W48 W54 W59 W70 W53 W63 W69 W52 W56 W60 W65 W78 W87 W
- Lumens(Approx)2295 Lm2846 Lm2312 Lm2926 Lm2222 Lm2763 Lm3380 Lm3894 Lm4415 Lm4916 Lm3401 Lm4115 Lm4614 Lm4964 Lm3313 Lm3853 Lm4390 Lm4924 Lm5406 Lm5888 Lm6346 Lm6894 Lm5614 Lm6183 Lm6654 Lm5460 Lm5984 Lm6504 Lm7597 Lm7718 Lm8066 Lm7025 Lm7539 Lm8056 Lm8566 Lm9545 Lm10524 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Step DimNon-Dim0-10VDALILutron Hi-lume EcoSystem (LDE1)
- Controls/NetworkWaveLinx
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance60000 h
- CertificatesUL/CULDLC*T24*RoHSBAA
- EnvironmentAntimicrobial FinishDampWetHealthcare General
- Mounting TypeCeiling RecessedT-Grid Ceiling
- HousingICChicago Plenum
- Housing Depth3 3/8 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
