Corelite (Cooper Lighting Solutions)

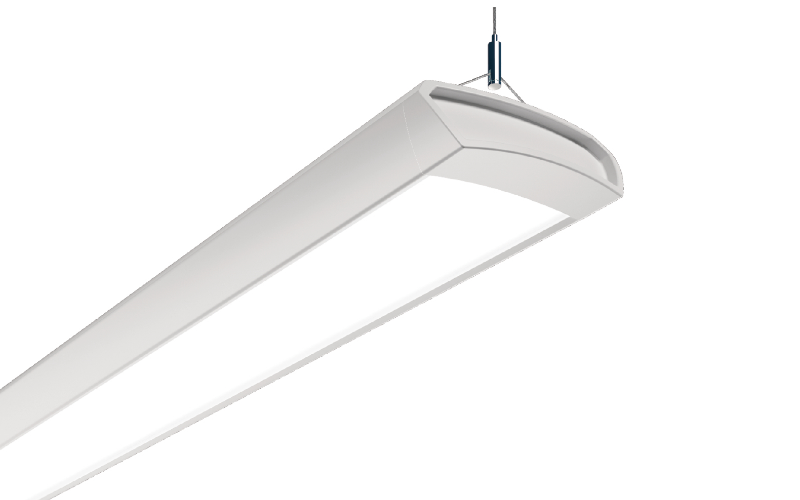

CTA. Continua LED Suspended Direct / Indirect.
Configure
Add to project




RESOURCES
DESCRIPTION
The Continua™suspended linear provides a fresh modern aesthetic with minimal lines and seamless illumination along the entire row length. Combining the latest LED technology with precision engineered optical control, the Continua provides high quality illumination while maximizing spacing capabilities and delivering up to 147 lumens per watt. A wide range of direct/indirect distributions are available to choose from as well as independent up/down circuiting for ultimate flexibility. Available in 4’, 8’, 12’, and continuous runs, the Continua is well suited for commercial open offices, private offices, conference rooms, corridors, and educational facilities.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 7"L: 4 Ft8 Ft12 FtRun length (Ft)H: 2.4"
- Light SourceLED
- CCT/Color3000K3500K4000K
- CRI80 90
- Watt(Approx)5.7 W/Ft7.5 W/Ft9.4 W/Ft11.5 W/Ft
- Lumens(Approx)575 Lm/Ft761 Lm/Ft998 Lm/Ft1265 Lm/Ft1513 Lm/Ft
- OpticsDirectDirect/IndirectIndirect/DirectBatwing Indirect/General Direct
- Adjustable
- DimmingDim to 1%Lutron Hi-lume EcoSystem (LDE1)Fifth Light DALI
- Controls/NetworkEnlightedWireless DimmingIntegral Sensor
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance121000 h
- CertificatesUL/CULDLC*RoHSBAA
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
