Corelite (Cooper Lighting Solutions)

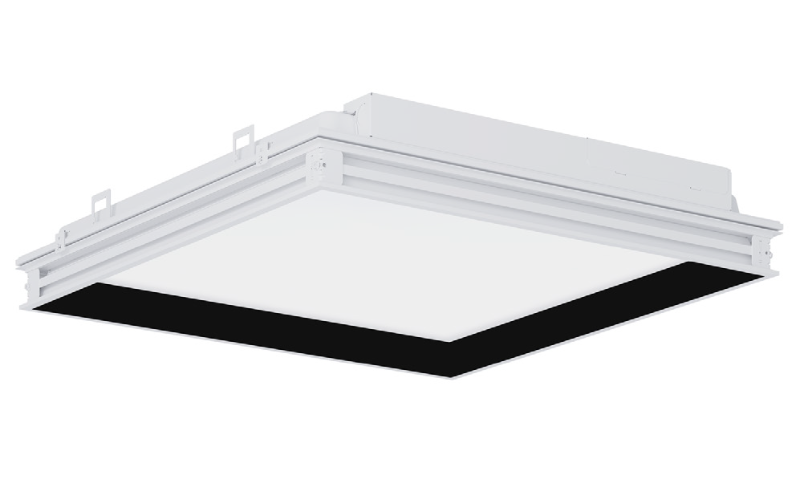

PTR. Perceive Recessed LED 1' x 4', 2' x 2', 2' x 4'.
Configure
Add to project
RESOURCES
DESCRIPTION

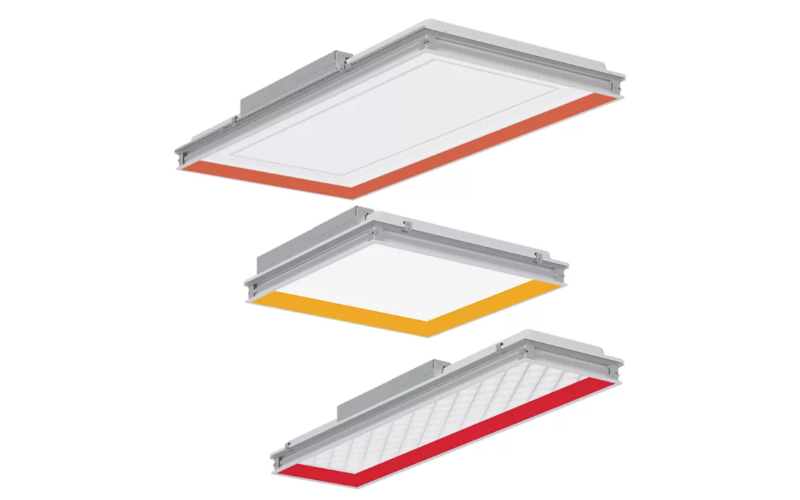

The Corelite Perceive PTR series brings dimension and unique character by raising the illuminated surface with a beautifully beveled, customizable color regress. Offered in 2x2, 2x4 and 1x4 sizes with 14 different standard regress colors. The Perceive PTR is available with high lumen output options in a unique aesthetic enabling personal, distinctive designs with a focus on visual comfort.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1 Ft2 FtL: 2 Ft4 Ft
- Light SourceLED
- CCT/Color3000K3500K4000K5000K
- CRI80 90
- Watt(Approx)15 W16 W19 W23 W26 W24 W28 W32.1 W35 W39 W33 W37 W40.9 W49.8 W41 W63 W71 W52 W51 W60 W68 W76 W85 W
- Lumens(Approx)1985 Lm1970 Lm1905 Lm2840 Lm2436 Lm2970 Lm3627 Lm4527 Lm3373 Lm4470 Lm4906 Lm3511 Lm4043 Lm4609 Lm5392 Lm6871 Lm6140 Lm5056 Lm6194 Lm7577 Lm7205 Lm8099 Lm8878 Lm9766 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Step Dim0-10VDALILutron Hi-lume EcoSystem (LDE1)
- Controls/NetworkBluetoothWaveLinx
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance170000 h
- CertificatesUL/CULT24*RoHSBAA
- EnvironmentAntimicrobial FinishDampHealthcare General
- Mounting TypeCeiling RecessedT-Grid Ceiling
- HousingICChicago Plenum
- Housing Depth4 1/4 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timePTR
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
