Corelite (Cooper Lighting Solutions)

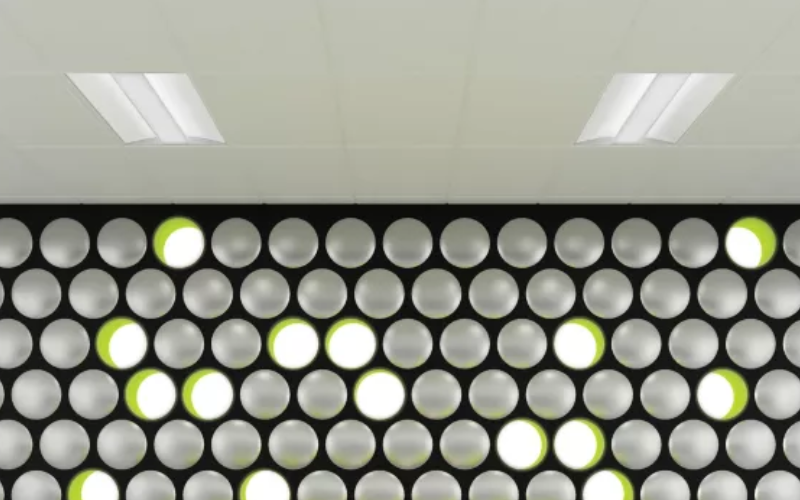

R3. CLASS Curved Lens LED 2’ x 2’ Recessed.
Configure
Add to project



RESOURCES
DESCRIPTION
The Corelite R3/Z3 LED combines excellent performance with the high sense of style and superior brightness management that characterizes the Corelite Class RZ family. The proprietary LED platform delivers a soft, diffuse volume of pure white light that carries the general character of a fluorescent source while simultaneously eliminating unsightly socket shadows and the hassle of luminaire maintenance. Available in 2x2, 2x4, 1x4, and multiple lensing styles, the Class RZ family is ideal for a large range of architectural interiors including offices, schools, and hospitals.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2 FtL: 2 Ft
- Light SourceLED
- CCT/Color3000K3500K4000K
- CRI85
- Watt(Approx)16.4 W20.8 W25.6 W30.5 W35.6 W39.9 W
- Lumens(Approx)2059 Lm2559 Lm3065 Lm3544 Lm3980 Lm4507 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Step Dim0-10VLutron Hi-lume EcoSystem (LDE1)Fifth Light DALI
- Controls/Network
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance159000 h
- CertificatesUL/CULRoHS
- EnvironmentDamp
- Mounting TypeCeiling RecessedT-Grid CeilingSlot T-Grid Ceiling
- HousingICChicago PlenumAir Return
- Housing Depth3 3/4 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
R3-22
—
