Corelite (Cooper Lighting Solutions)
WSLA. Wavestream Linear Advanced Series - Hub Patterns LED.
Configure
Add to project
RESOURCES
DESCRIPTION

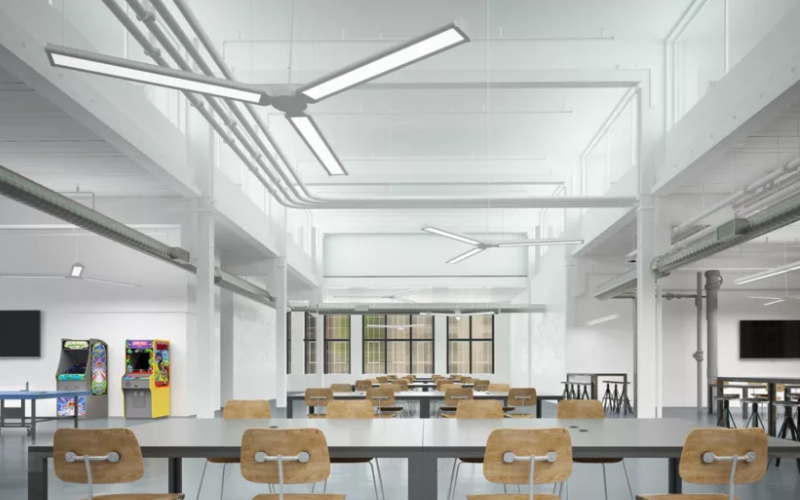

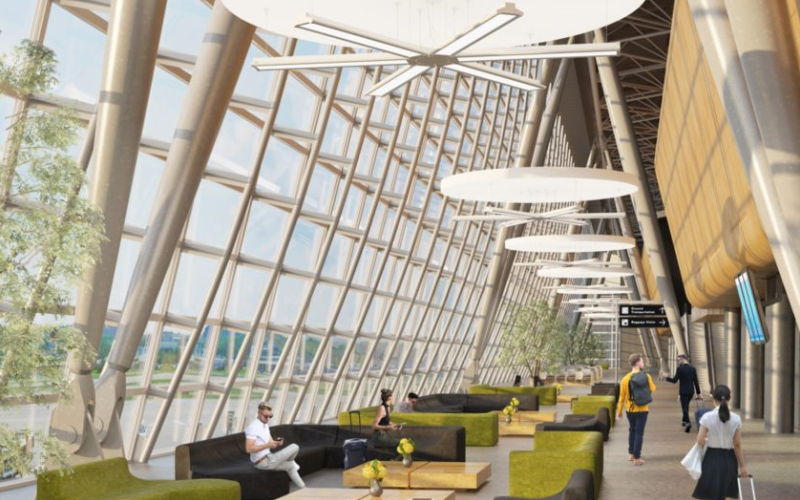

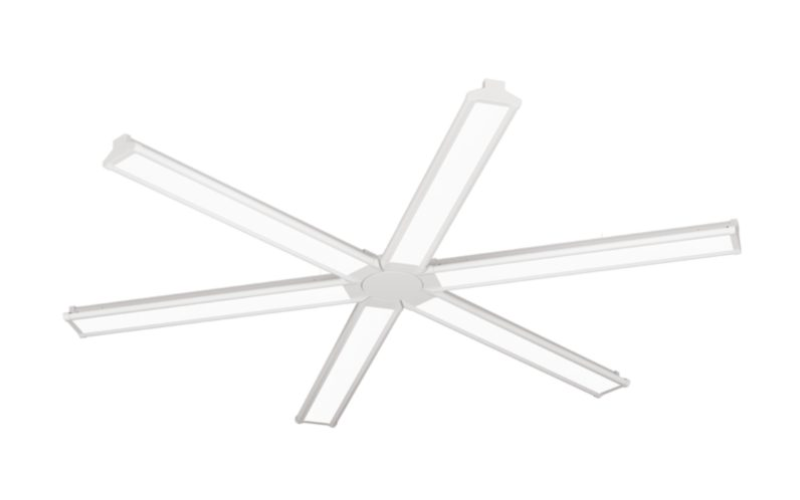

The WSLA specification fixture series incorporates a unique hub design to enable affordable patterns with endless possible configurations. Offered in multiple sizes and mounting options, WSLA can offer unique lighting patterns or straight continuous rows. The WSLA series is the ideal choice for commercial interiors needing to add visual interest to large, open spaces where flexibility is important such as office collaboration areas, lobbies, and atriums.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 7 7/8"L: 4'8'H: 3 1/4"
- Light SourceLED
- CCT/Color3000K3500K4000K5000K
- CRI80 90
- Watt(Approx)3.9 W/Ft5.8 W/Ft7.9 W/Ft9.7 W/Ft11.9 W/Ft14.9 W/Ft19.1 W/Ft
- Lumens(Approx)504 Lm/Ft753 Lm/Ft992 Lm/Ft1250 Lm/Ft1487 Lm/Ft1724 Lm/Ft2004 Lm/Ft
- OpticsDirectDirect/IndirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%0-10VLutron Hi-lume EcoSystem (LDE1)Fifth Light DALI
- Controls/NetworkBluetoothWaveLinxIntegral Sensor
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance335000 h
- CertificatesUL/CULDLC*RoHS
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeWSLA-HP
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
