Coronet
CDL3. Round Wall Wash.
Configure
Add to project
RESOURCES
DESCRIPTION

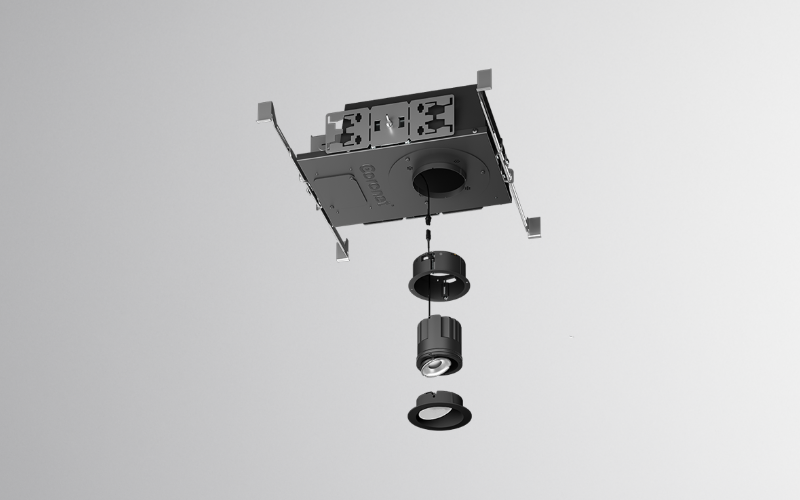

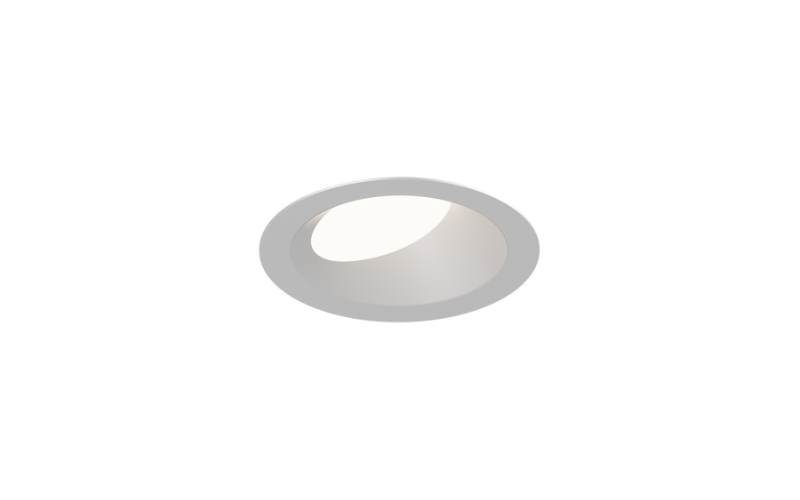

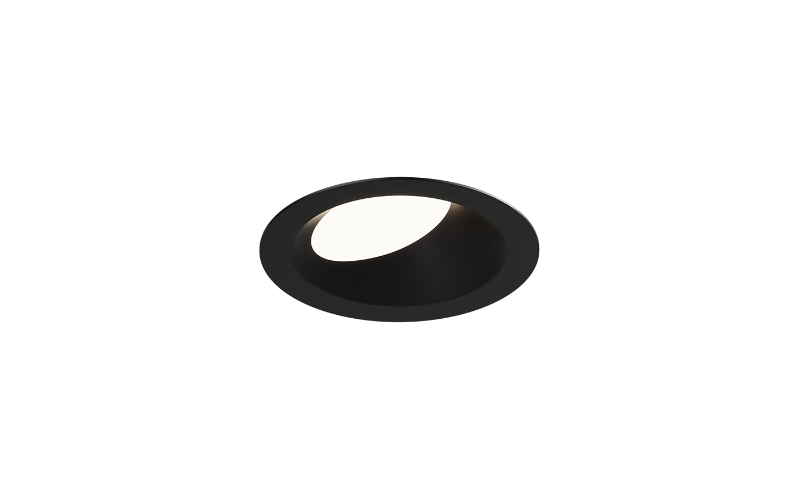

High-performance 3″ round wall wash downlight. Available in trimmed, trimless, or millwork options, with 725-2050 delivered Lumens, CRI > 90, R9 > 50, and field-changeable optics. Modular design allows for easy replacement. Title 24 JA8 compliant.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4.4"L: 4.4"
- Light SourceLED
- CCT/Color2400K or less2700K3000K3000K Dim to Warm3500K4000KTunable White
- CRI90
- Watt(Approx)7 W10 W14 W15 W21 W
- Lumens(Approx)630 Lm900 Lm1000 Lm1265 Lm1200 Lm1900 Lm
- OpticsDirectAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V120V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLMade in USA
- EnvironmentDamp
- Mounting TypeCeiling RecessedDrywallTrimless DrywallT-Grid CeilingWood
- HousingNew ConstructionICChicago PlenumRemodelIC Air Tight
- Housing Depth3.5 ''4 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeCDL3-RD-WW
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
