Coronet

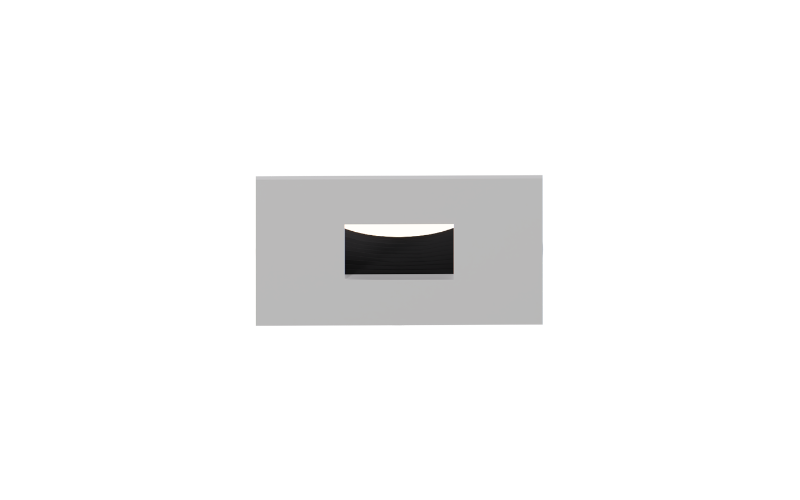

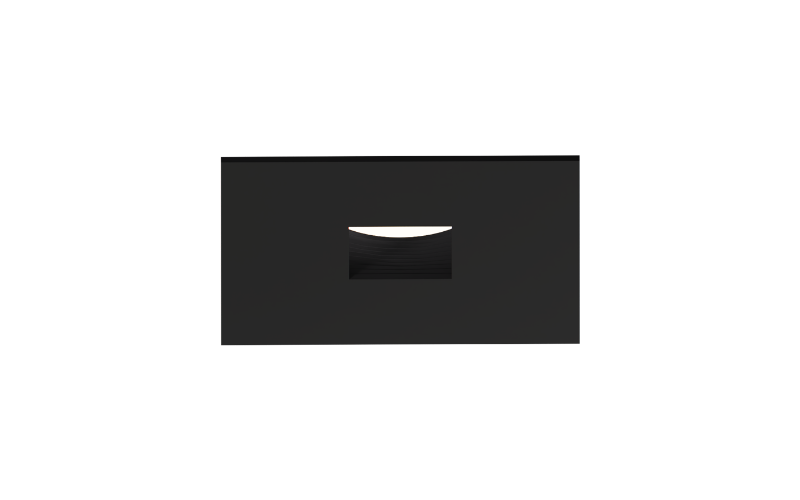

CDL3. Square Pinhole Adjustable.
Configure
Add to project
RESOURCES
DESCRIPTION

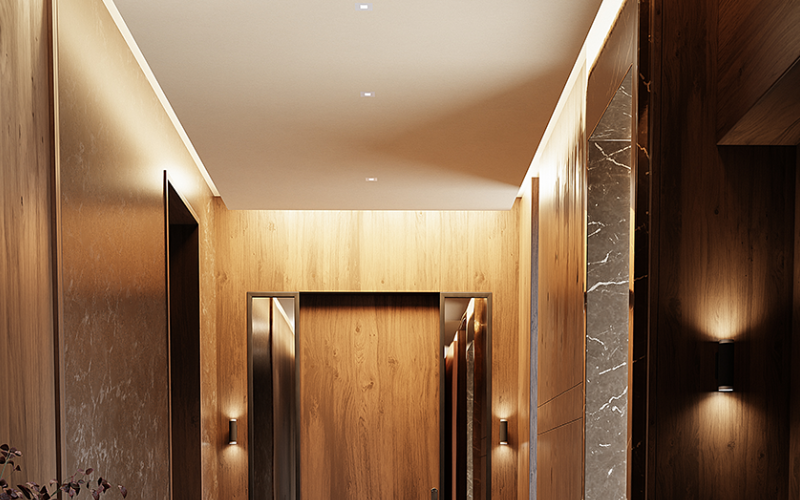

The CDL3 Square 1.25″ Pinhole delivers high-performance architectural downlighting with a recessed design that minimizes glare for a clean, minimal ceiling look. Available as fixed or adjustable, and in trimmed, trimless, or millwork options, it provides 535–1035 lumens, CRI > 90, R9 > 50, and field-changeable optics. Modular and Title 24 JA8 compliant.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3.3"4.4"5.9"L: 4.4"5.9"3.3"
- Light SourceLED
- CCT/Color2400K or less2700K3000K3000K Dim to Warm3500K4000KTunable White
- CRI90
- Watt(Approx)7 W10 W14 W21 W
- Lumens(Approx)565 Lm700 Lm580 Lm790 Lm1075 Lm1800 Lm
- OpticsDirectNarrowMediumFlood
- AdjustableAdjustable
- DimmingDim to 3-10%Dim to 1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/NetworkLutron®nLight®Casambi
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLMade in USA
- EnvironmentDamp
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingNew ConstructionICChicago PlenumRemodelIC Air Tight
- Housing Depth4 ''3.5 ''4.75 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeCDL3-SP-ADJ
