DROP-N. Drop Narrow 2.5 direct.
Configure
Add to project
RESOURCES
DESCRIPTION

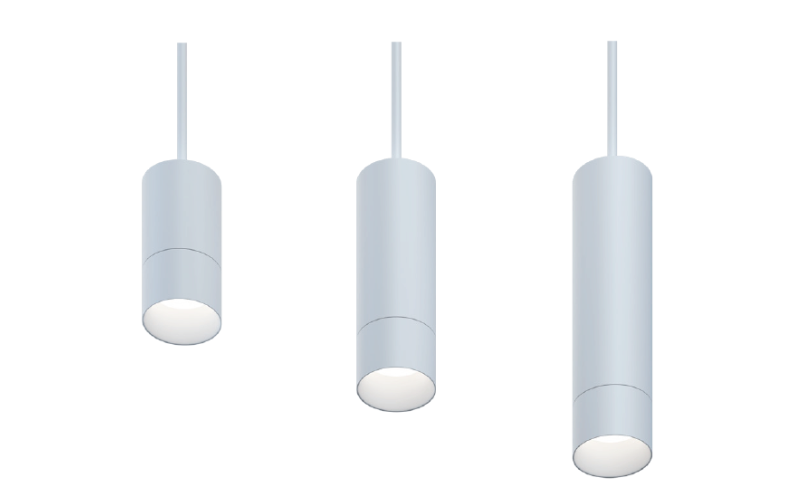

Narrow or wide diameter, available in three different fixture heights. Several beams spreads offered. Can be surface mounted or suspended by cable.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.4"L: 2.4"H: 4.5"6"8.1"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI90
- Watt(Approx)12 W
- Lumens(Approx)1031 Lm
- OpticsDirectMediumFloodWide Flood
- Adjustable
- DimmingDim to 1%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesETLMade in USA
- EnvironmentDamp
- Mounting TypePendantCeiling Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeDROP-N_QS
