Coronet

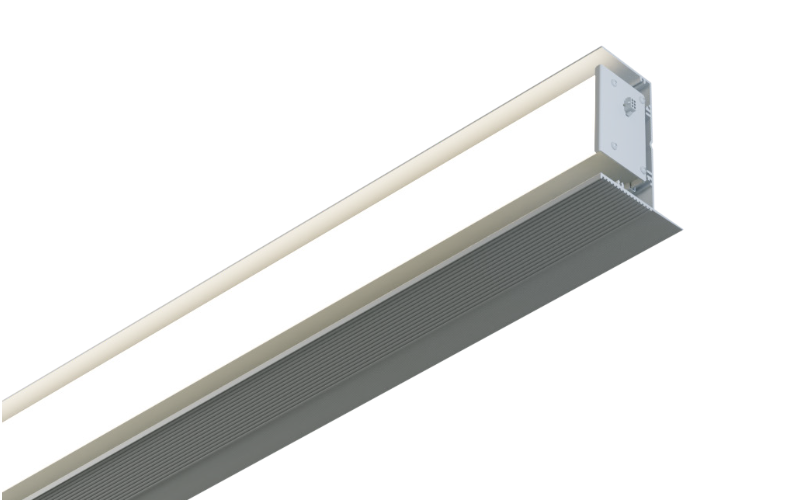

EZ.WW.PI. Easy perimeter wall wash plaster in.
Configure
Add to project
RESOURCES
DESCRIPTION
Easy perimeter wall wash is an easy-install luminaire with a precision engineered WAO! Wide Asymmetric Optic to project light farther down the wall. It’s available in plaster-in or snap-into-clip versions.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.1"L: 2 Ft4 Ft8 FtRun lengthH: 3.5"
- Light SourceLED
- CCT/Color2700K3000K3000K Dim to Warm3500K4000K5000KTunable White
- CRI90
- Watt(Approx)5 W/Ft7 W/Ft10 W/Ftcustom
- Lumens(Approx)540 Lm/Ft735 Lm/Ft997 Lm/Ftcustom
- OpticsDirectAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Ecosystem DigitalDMX
- Controls/NetworkLutron®EthernetnLight®Casambi
- Power/VoltageIntegralPoEUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesETLBAA
- EnvironmentDamp
- Mounting TypeSurface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeEZ.WW.PI
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
