Coronet
GEM suspended/surface.
Configure
Add to project
RESOURCES
DESCRIPTION

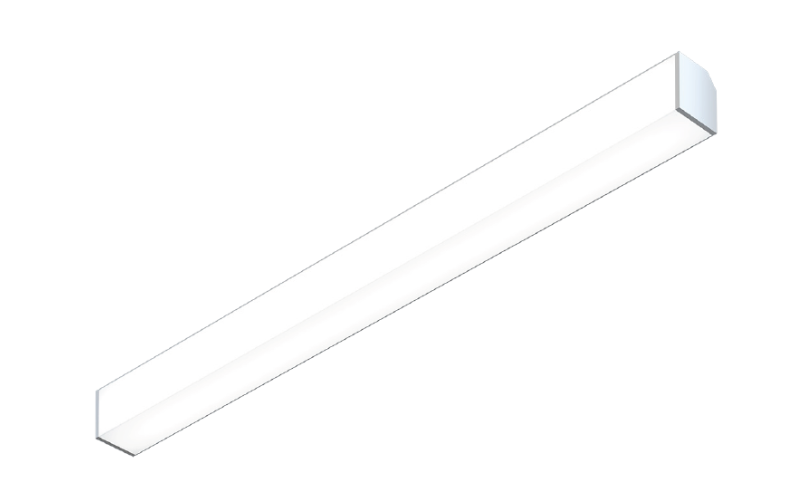

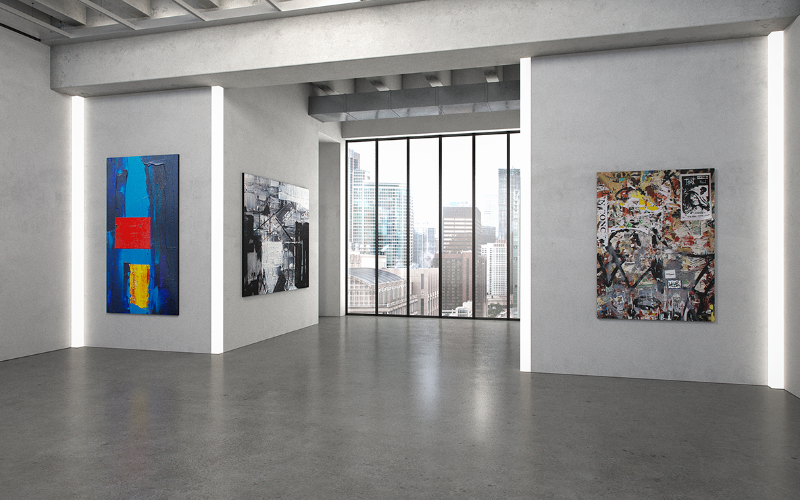

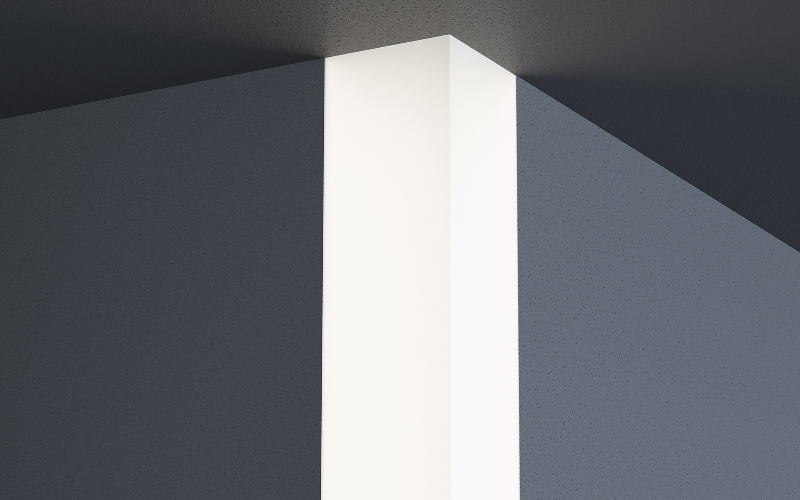

Linear luminaire with diamond-shaped profile ideal for corner applications including vertical inner corners of the wall and between the wall and ceiling, as well as suspended with power over air craft cable. Also available recessed for outer corners.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 4.5"L: 2 Ft4 Ft8 FtRun length (inch)H: 3.9"
- Light SourceLED
- CCT/Color2700K3000K3000K Dim to Warm3500K4000K5000KTunable WhiteRGBW
- CRI90
- Watt(Approx)5 W/Ft7 W/Ft9 W/Ftcustom
- Lumens(Approx)557 Lm/Ft751 Lm/Ft1002 Lm/Ftcustom
- OpticsDirectWide Flood
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)DMX
- Controls/NetworkLutron®EthernetnLight®Wireless DimmingCasambi
- Power/VoltageIntegralPoEUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesETLMade in USABAA
- EnvironmentDamp
- Mounting TypePendantSurface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeGEM_QS
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
