Coronet
LS2 CURVE indirect/direct.
Configure
Add to project
RESOURCES
DESCRIPTION

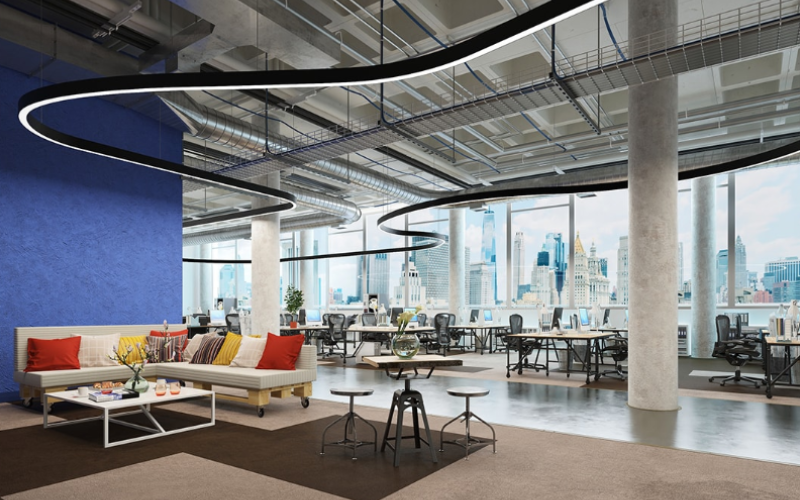

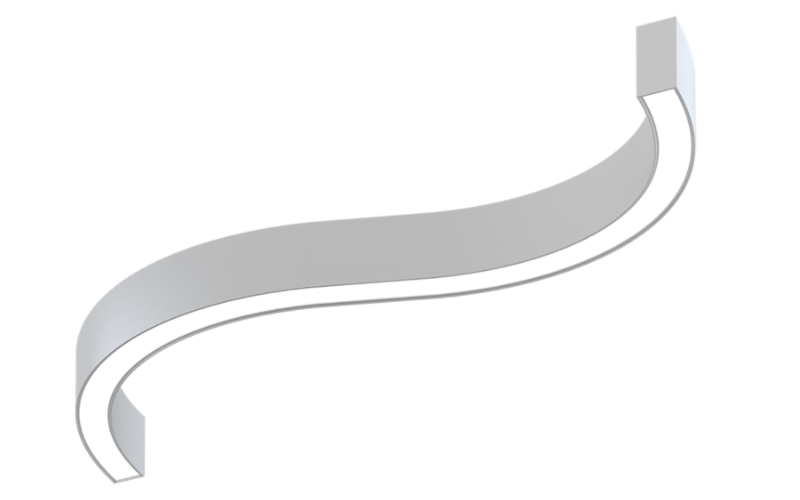

LS2 Curve is a Declare Listed, custom curved, architectural luminaire, with a 2.5″ aperture. Specifiable patterns may include custom radii and straight sections. Aircraft cable, surface, or stem mount.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.5"L: Run lenght (inch)H: 4.5"
- Light SourceLED
- CCT/Color2700K3000K3000K Dim to Warm3500K4000K5000KTunable WhiteRGBW
- CRI90
- Watt(Approx)3.5 W/Ft5.5 W/Ft7.5 W/Ftcustom
- Lumens(Approx)341 Lm/Ft309 Lm/Ft467 Lm/Ft520 Lm/Ft673 Lm/Ft560 Lm/Ftcustom
- OpticsDirect/IndirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)DMX
- Controls/NetworkLutron®EthernetnLight®Wireless DimmingCasambi
- Power/VoltageIntegralPoEUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesETLMade in USAT24*DeclareBAA
- EnvironmentDamp
- Mounting TypePendantWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeLS-CURVE-UPDN
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
