Coronet

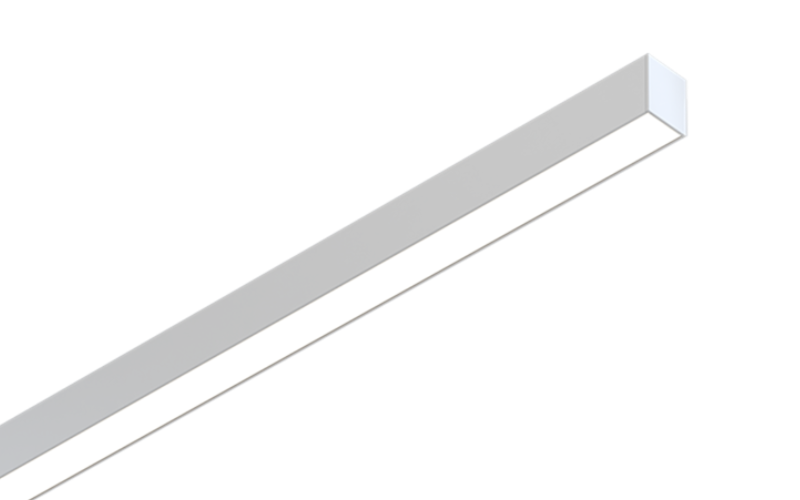

LS1 LP. Low Profile direct.
Configure
Add to project
RESOURCES
DESCRIPTION
LED luminaire using aluminum extrusion with low profile and narrow aperture size providing continuous light.. Custom patterns, colors and elevations available.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1.9"L: 24"48"96"Run length (inch)H: 1.9"
- Light SourceLED
- CCT/Color2700K3000K3000K Dim to Warm3500K4000K5000KTunable White
- CRI90
- Watt(Approx)3.5 W/Ft5.5 W/Ft7.5 W/Ftcustom
- Lumens(Approx)426 Lm/Ft649 Lm/Ft841 Lm/Ftcustom
- OpticsDirectGeneral DiffusedAsymmetric/WashBatwing
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)DMX
- Controls/NetworkLutron®EthernetnLight®Wireless DimmingCasambi
- Power/VoltageRemotePoEUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesETLMade in USAT24*DeclareBAA
- EnvironmentDamp
- Mounting TypePendantCeiling SurfaceWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeLS1-LP_QS
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
