Coronet
LS2 RG UPDN. Regressed indirect/direct.
Configure
Add to project
RESOURCES
DESCRIPTION

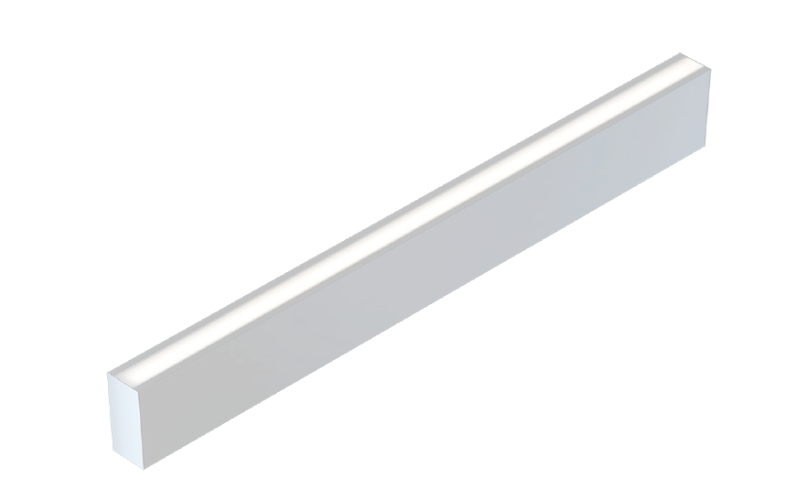

Suspended, linear luminaire with nominal 1” regressed lens. Available all direct or with continuous indirect lighting.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.6"L: 24"48"96"Run length (inch)H: 2.6"
- Light SourceLED
- CCT/Color2700K3000K3000K Dim to Warm3500K4000K5000KTunable WhiteRGBW
- CRI90
- Watt(Approx)3.5 W/Ft5.5 W/Ft7.5 W/Ftcustom
- Lumens(Approx)466 Lm/Ft380 Lm/Ft705 Lm/Ft602 Lm/Ft915 Lm/Ft788 Lm/Ftcustom
- OpticsDirectIndirectDirect/IndirectGeneral DiffusedBatwing Indirect/General DirectAsymmetric Indirect/General Direct
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)DMX
- Controls/NetworknLight®Casambi
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesETLMade in USAT24*DeclareBAA
- EnvironmentDamp
- Mounting TypePendantWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeLS2-RG-UPDN_QS
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
