Coronet
LS2 UPDN. indirect/direct.
Configure
Add to project
RESOURCES
DESCRIPTION

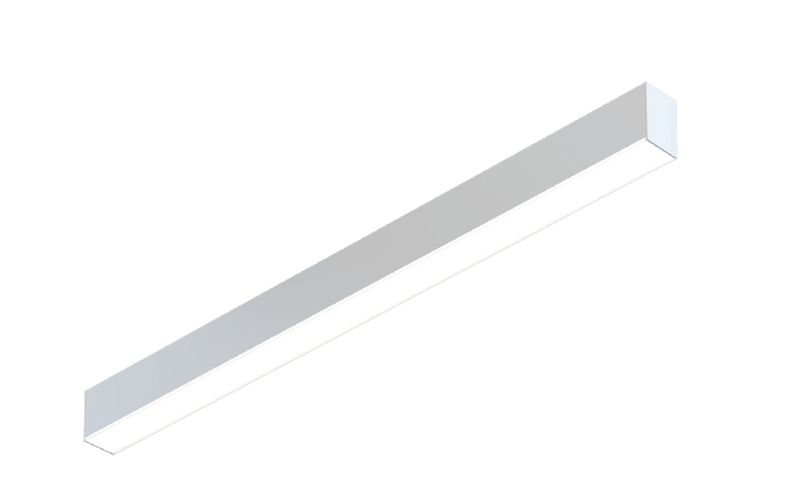

Aluminum extrusion with small profile (2-1/2-inch width) providing continuous light. Available in both LED and fluorescent with either all direct or all indirect distribution. Custom patterns, colors and elevations also available.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.6"L: 24"48"96"Run length (inch)H: 3.8"
- Light SourceLED
- CCT/Color2700K3000K3000K Dim to Warm3500K4000K5000KTunable WhiteRGBW
- CRI90
- Watt(Approx)3.5 W/Ft5.5 W/Ft7.5 W/Ftcustom
- Lumens(Approx)466 Lm/Ft422 Lm/Ft705 Lm/Ft669 Lm/Ft915 Lm/Ft875 Lm/Ftcustom
- OpticsIndirect/DirectGeneral DiffusedAsymmetric/WashBatwingBatwing Indirect/General DirectAsymmetric Indirect/General Direct
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)DMX
- Controls/NetworkLutron®EthernetnLight®Wattstopper® DLMWireless DimmingCasambiIntegral Sensor
- Power/VoltageIntegralPoEUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesETLMade in USADLC*T24*DeclareBAA
- EnvironmentDamp
- Mounting TypePendantWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeLS2-UPDN
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
