Coronet
LS2.AV. LS2 AV direct.
Configure
Add to project
RESOURCES
DESCRIPTION

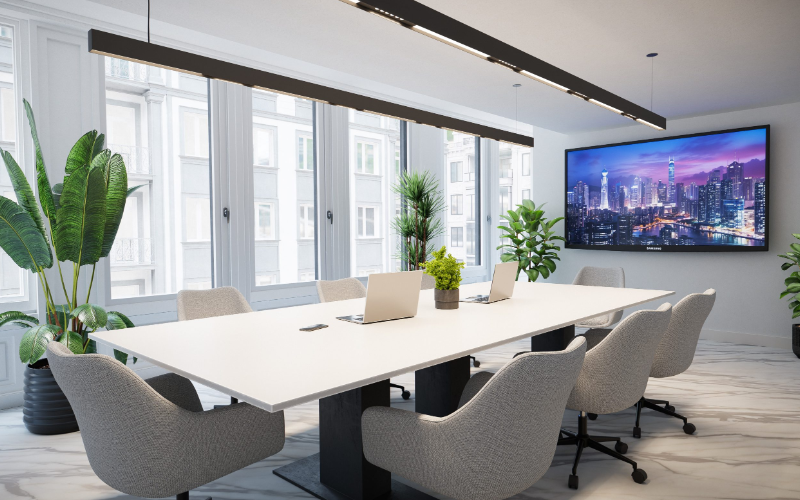

LS2 AV is a versatile, low-glare luminaire designed for audio and video conferencing. It combines a specifiable asymmetric linear lens, aimable cylindrical spotlights, and regressed downlights in customizable lengths and layouts.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.6"L: 4'8'Run length (Ft)H: 4.8"
- Light SourceLED
- CCT/Color2700K3000K3500K4000KRGBW
- CRI90
- Watt(Approx)3.5 W/Ft5.5 W/Ft7.5 W/Ftcustom
- Lumens(Approx)380 Lm/Ft602 Lm/Ft788 Lm/Ftcustom
- OpticsDirectGeneral DiffusedAsymmetric/Wash
- AdjustableAdjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)DMX
- Controls/NetworkLutron®EthernetnLight®Casambi
- Power/VoltageIntegralPoEUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesETLMade in USA
- EnvironmentDamp
- Mounting TypePendantWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeLS2.AV
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
