LS2. Slick Curve STFU direct.
Configure
Add to project
RESOURCES
DESCRIPTION

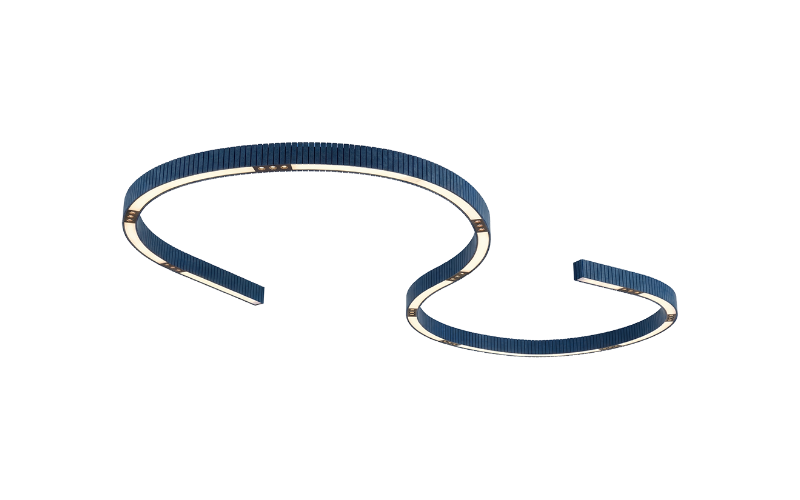

LS2 Slick Curve STFU is a custom curved architectural luminaire with a 2.5″ aperture and integrated accent downlight modules, enhanced with acoustic performance. Specifiable patterns include custom radii and straight sections, combining visual clarity and sound control in a single system.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.5"L: Run length (inch)H: 4.5"
- Light SourceLED
- CCT/Color2700K3000K3000K Dim to Warm3500K4000K5000KTunable WhiteRGBW
- CRI90
- Watt(Approx)3.5 W/Ft5.5 W/Ft7.5 W/Ftcustom
- Lumens(Approx)341 Lm/Ft520 Lm/Ft673 Lm/Ftcustom
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Ecosystem DigitalDMX
- Controls/NetworkLutron®nLight®Casambi
- Power/VoltageIntegralPoEUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesETLMade in USA
- EnvironmentDamp
- Mounting TypePendantWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeLS2.SLK.CURVE.STFU
