Coronet
LS2. Slick Curve indirect/direct.
Configure
Add to project
RESOURCES
DESCRIPTION

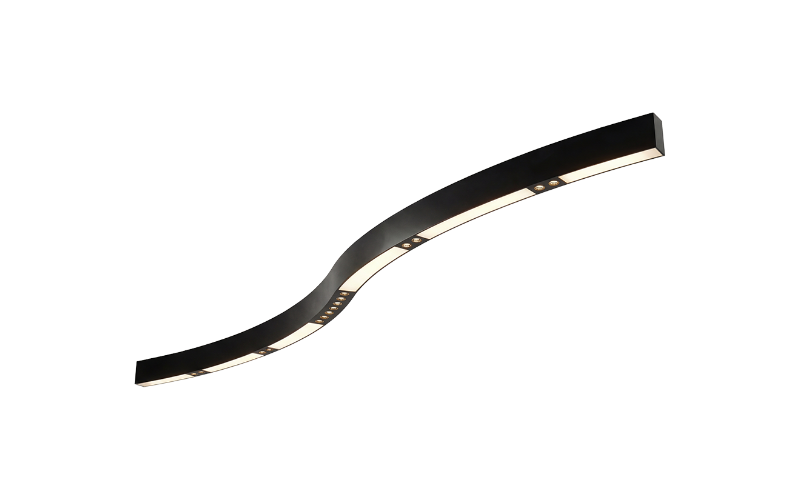

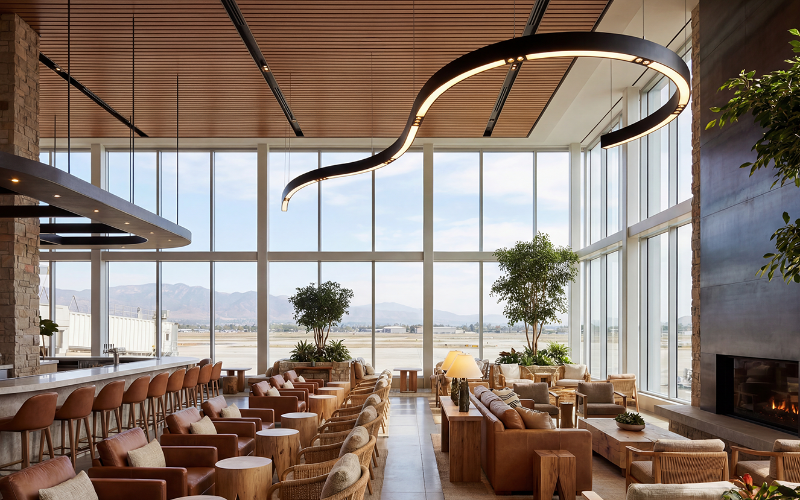

LS2 Slick Curve is a custom curved architectural luminaire with a 2.5″ aperture and integrated accent downlight modules. Specifiable patterns include custom radii and straight sections. Available in aircraft cable, surface, or stem mount for versatile installation.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.5"L: Run length (inch)H: 4.5"
- Light SourceLED
- CCT/Color2700K3000K3000K Dim to Warm3500K4000K5000KTunable WhiteRGBW
- CRI90
- Watt(Approx)3.5 W/Ft5.5 W/Ft7.5 W/Ftcustom
- Lumens(Approx)446 Lm/Ft341 Lm/Ft696 Lm/Ft520 Lm/Ft673 Lm/Ft888 Lm/Ftcustom
- OpticsIndirect/DirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Ecosystem DigitalDMX
- Controls/NetworkLutron®nLight®Casambi
- Power/VoltageIntegralPoEUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesETLMade in USA
- EnvironmentDamp
- Mounting TypePendantWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
