Coronet
LS3 LVR. Louver direct.
Configure
Add to project
RESOURCES
DESCRIPTION

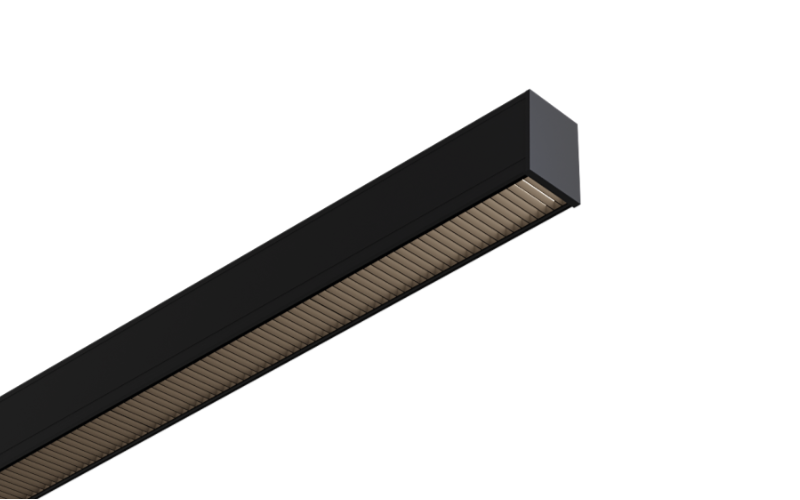

LS3 Louver is a lensed suspended luminaire with a straight blade louver. Light distribution may be direct, or indirect/direct.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3"L: 24"48"96"Run length (inch)H: 3.6"
- Light SourceLED
- CCT/Color2700K3000K3000K Dim to Warm3500K4000K5000KTunable WhiteRGBW
- CRI90
- Watt(Approx)3.5 W/Ft5.5 W/Ft7.5 W/Ftcustom
- Lumens(Approx)163 Lm/Ft222 Lm/Ft301 Lm/Ftcustom
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)DMX
- Controls/NetworkLutron®EthernetnLight®Wattstopper® DLMWireless DimmingCasambi
- Power/VoltageIntegralPoEUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesETLMade in USAT24*DeclareBAA
- EnvironmentDamp
- Mounting TypePendantCeiling SurfaceWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeLS3-LVR
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
