Coronet

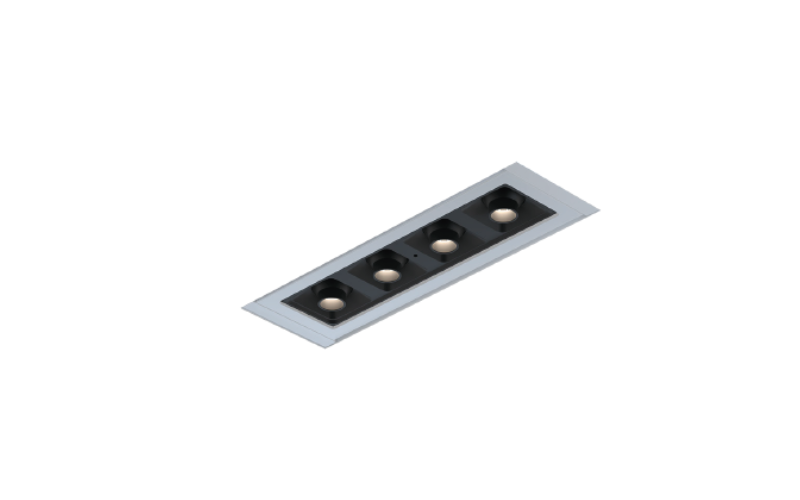

LSR2 DL FX. Downlight Fixed Module.
Configure
Add to project
RESOURCES
DESCRIPTION
A recessed, linear system using specifiable modular downlights. Standard and custom placement of modules available in three different forms: fixed, our patented 360° adjustable, and wall wash. All available with various beam spreads. Linear patterns offered, giving this system a wide range of custom capabilities.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.6"L: 8"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI90
- Watt(Approx)9 W12 W16.75 W
- Lumens(Approx)562 Lm728 Lm908 Lm
- OpticsDirectMediumFloodWide Flood
- Adjustable
- DimmingDim to 1%Dim to <1%0-10V
- Controls/NetworkEthernet
- Power/VoltageRemotePoE
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLMade in USA
- EnvironmentDamp
- Mounting TypeSystemCeiling Recessed
- HousingNew Construction
- Housing Depth3.3 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeLSR2-DL-FX_QS
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
