Coronet
LSR2.CAP. LSR2 Capsule recessed.
Configure
Add to project
RESOURCES
DESCRIPTION

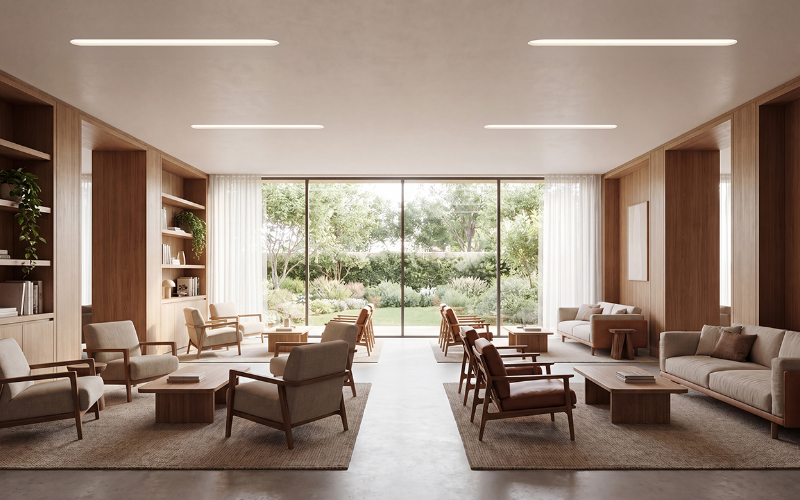

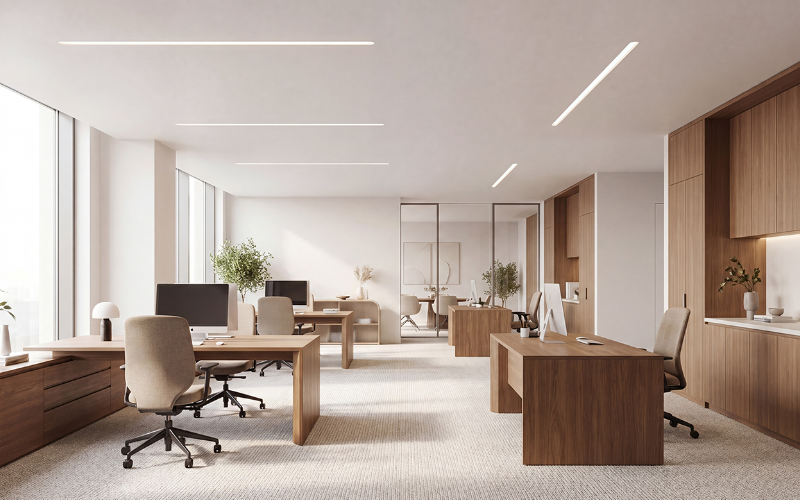

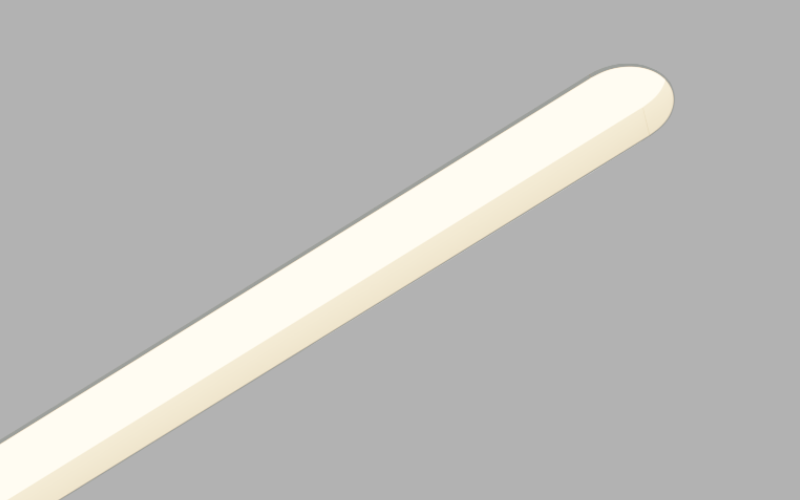

LSR2 Capsule is a Declare Listed 2.6-inch recessed architectural luminaire, with rounded, cast aluminum endcaps and a one-inch regressed lens. Available in 2, 4, and 8′ lengths or custom lengths and patterns.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.6"L: 2 Ft4 Ft8 FtRun length (Ft)
- Light SourceLED
- CCT/Color2700K3000K3000K Dim to Warm3500K4000K5000KTunable WhiteRGBW
- CRI90
- Watt(Approx)3.5 W/Ft5.5 W/Ft7.5 W/Ftcustom
- Lumens(Approx)380 Lm/Ft602 Lm/Ft788 Lm/Ftcustom
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)DMX
- Controls/NetworkLutron®nLight®Wattstopper® DLMCasambi
- Power/VoltageIntegralPoEUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesETLMade in USADeclareBAA
- EnvironmentDamp
- Mounting TypeCeiling RecessedDrywallT-Grid CeilingSlot T-Grid CeilingWood
- HousingNew ConstructionChicago Plenum
- Housing Depth4.8 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeLSR2.CAP
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
