Coronet

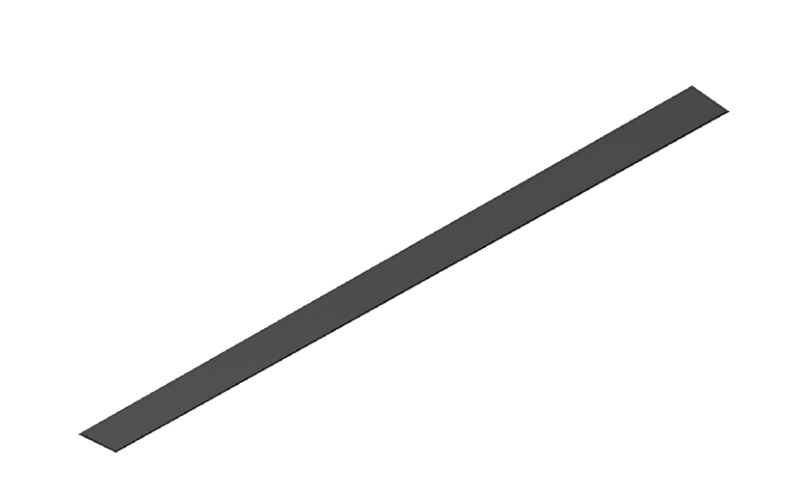

LSR3 BKO. Black Optic recessed.
Configure
Add to project
RESOURCES
DESCRIPTION
Narrow, linear luminaire with specially formulated black optic that allows the unilluminated fixture to seamlessly blend in to dark environments. Suitable for grid system and drywall installation as well as custom mounting requests.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3"4.2"4.6"L: 2 Ft4 Ft8 FtRun length (inch)
- Light SourceLED
- CCT/Color2700K3000K3000K Dim to Warm3500K4000K5000KTunable WhiteRGBW
- CRI90
- Watt(Approx)5 W/Ft7 W/Ft10 W/Ftcustom
- Lumens(Approx)119 Lm/Ft158 Lm/Ft216 Lm/Ftcustom
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)DMX
- Controls/NetworkLutron®EthernetnLight®Wireless DimmingCasambiIntegral Sensor
- Power/VoltageIntegralPoEUNV 120-277V347V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesETLMade in USABAA
- EnvironmentDamp
- Mounting TypeCeiling RecessedMillwork RecessedDrywallTrimless DrywallT-Grid CeilingSlot T-Grid CeilingWood
- HousingNew ConstructionChicago Plenum
- Housing Depth3.7 ''3.9 ''4.3 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
