Coronet

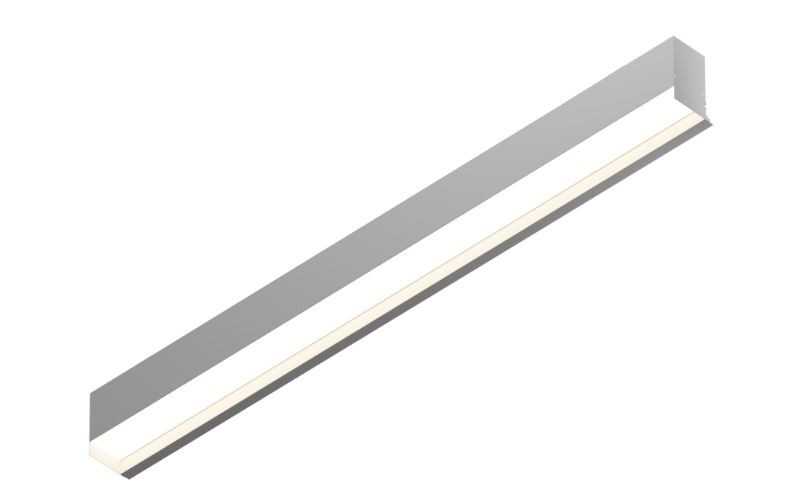

PF2. perimeter fill.
Configure
Add to project
RESOURCES
DESCRIPTION
PF2 is a 2″ aperture perimeter fill system providing balanced ambient light from the ceiling edge throughout the space. It creates a smooth, evenly illuminated environment with a minimal visual footprint, well-suited for corridors and enclosed applications. Customizable lengths with up to 3″ of field trimmability.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2.6"L: 2 Ft4 Ft8 FtRun length (inch)
- Light SourceLED
- CCT/Color2700K3000K3000K Dim to Warm3500K4000K5000KTunable WhiteRGBW
- CRI90
- Watt(Approx)3.5 W/Ft5.5 W/Ft7.5 W/Ftcustom
- Lumens(Approx)431 Lm/Ft586 Lm/Ft795 Lm/Ftcustom
- OpticsDirectAsymmetric/Wash
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)DMX
- Controls/NetworkLutron®EthernetnLight®Wireless DimmingCasambi
- Power/VoltageIntegralPoEUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesETLMade in USABAA
- EnvironmentDamp
- Mounting TypeCeiling RecessedDrywallT-Grid CeilingWood
- HousingNew ConstructionChicago Plenum
- Housing Depth8.8 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timePF2
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
