Coronet
PIER UPDN. indirect/direct.
Configure
Add to project
RESOURCES
DESCRIPTION

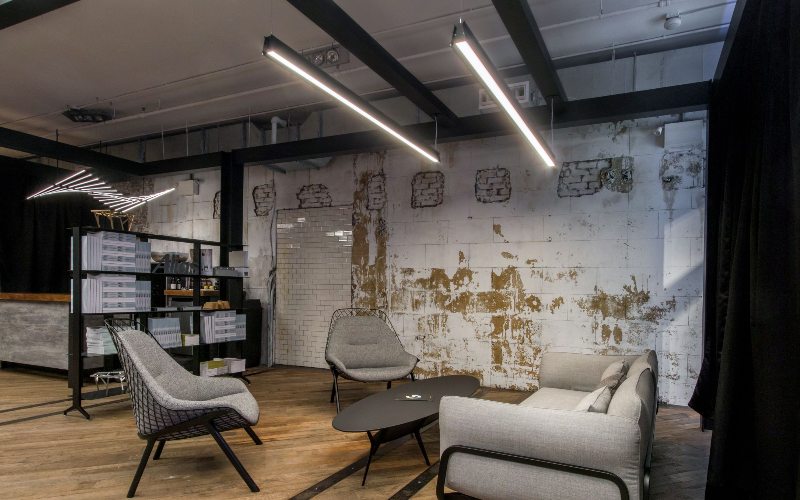

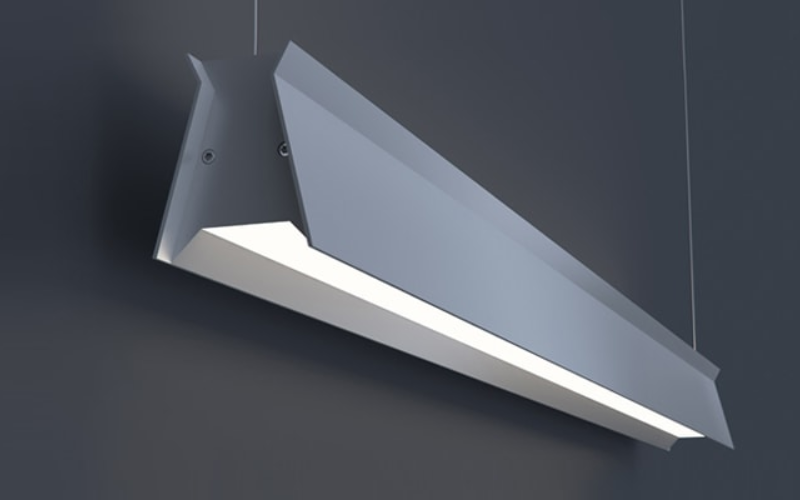

Stylized pendant fixture perfect for open ceiling applications and architectural spaces utilizing clean lines. The PIER offers a beveled edge and unique shape for added flair. Direct and indirect lighting. Custom patterns, colors and elevations also available.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3.2"L: 2 Ft4 Ft8 FtRun length (inch)H: 3.8"
- Light SourceLED
- CCT/Color2700K3000K3000K Dim to Warm3500K4000K5000KTunable WhiteRGBW
- CRI90
- Watt(Approx)5 W/Ft7 W/Ft10 W/Ftcustom
- Lumens(Approx)438 Lm/Ft440 Lm/Ft588 Lm/Ft599 Lm/Ft802 Lm/Ft785 Lm/Ftcustom
- OpticsDirect/IndirectGeneral DiffusedBatwing
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)DMX
- Controls/NetworkLutron®EthernetnLight®Wireless DimmingCasambi
- Power/VoltageIntegralPoEUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesETLMade in USABAA
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timePIER-LED-UPDN
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
