Coronet
RAY4 UPDN. indirect/direct.
Configure
Add to project
RESOURCES
DESCRIPTION

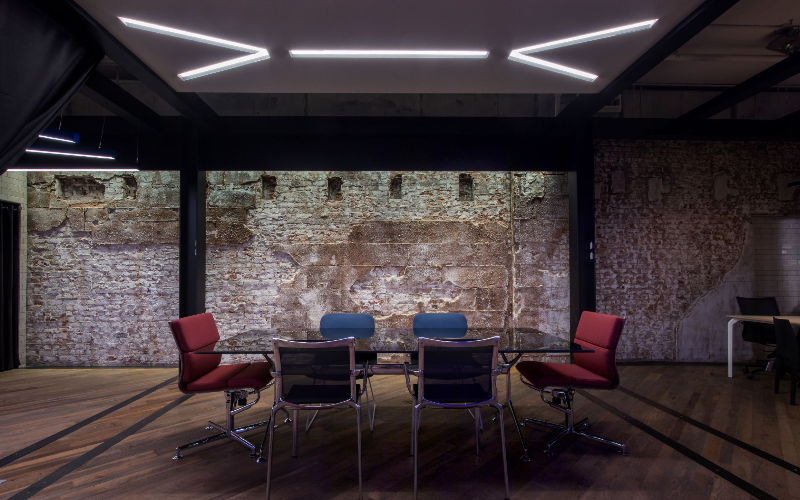

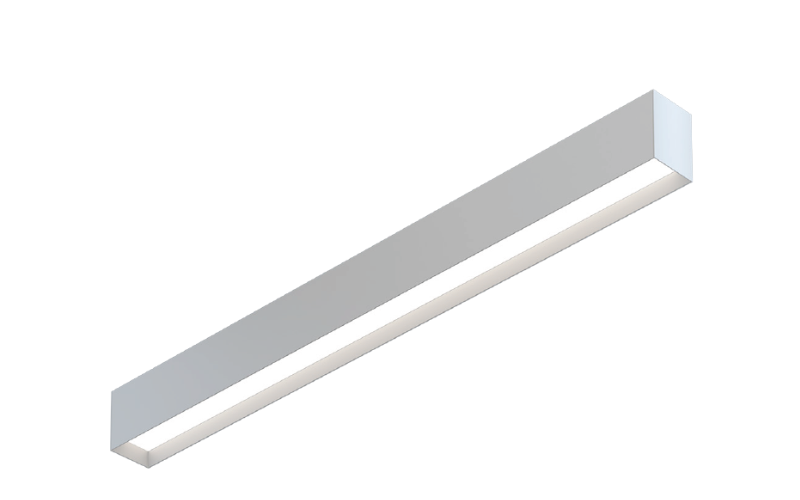

Linear, architectural luminaire with beveled aluminum extrusion. Custom patterns, colors and elevations also available.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3.4"L: 2 Ft4 Ft8 FtRun length (inch)H: 4.4"
- Light SourceLED
- CCT/Color2700K3000K3000K Dim to Warm3500K4000K5000KTunable WhiteRGBW
- CRI90
- Watt(Approx)5 W/Ft7 W/Ft10 W/Ftcustom
- Lumens(Approx)401 Lm/Ft533 Lm/Ft732 Lm/Ft551 Lm/Ft720 Lm/Ft957 Lm/Ftcustom
- OpticsIndirect/DirectGeneral DiffusedBatwing
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)DMX
- Controls/NetworkLutron®EthernetnLight®Wireless DimmingCasambi
- Power/VoltageIntegralRemotePoEUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesETLMade in USADLC*BAA
- EnvironmentDamp
- Mounting TypePendantWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeRAY4-UPDN
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
