Coronet
TRAZO.
Configure
Add to project
RESOURCES
DESCRIPTION

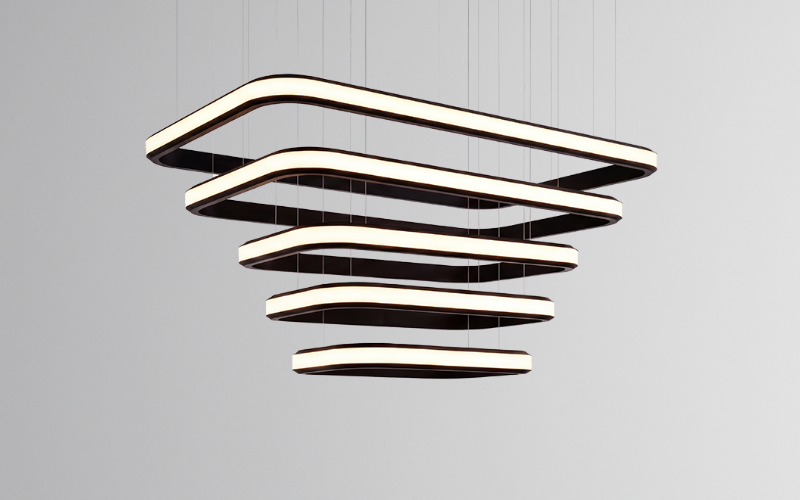

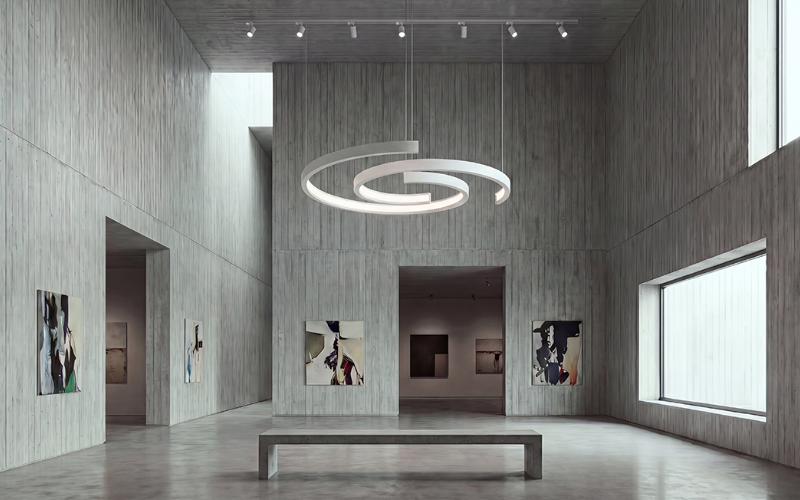

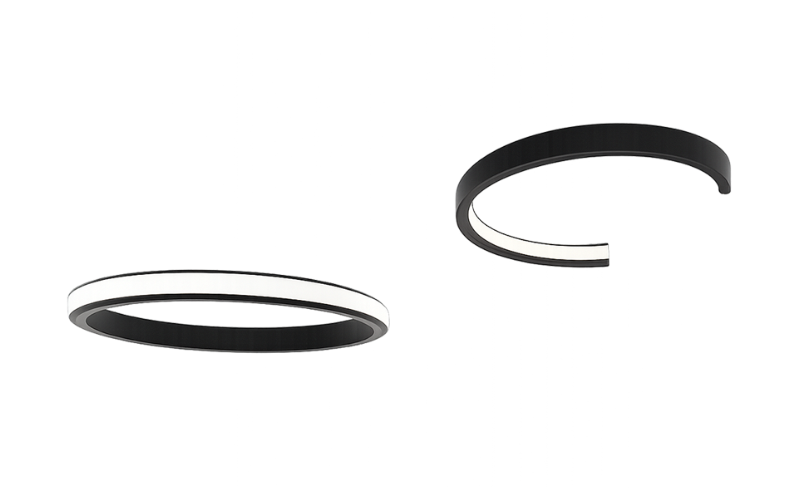

Trazo is a versatile geometric pendant system with side-facing illumination. Specifiable in custom curvilinear and geometric forms, it can be specified individually or combined to create distinctive luminous compositions.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1.3"L: Run length (inch)H: 2.1"
- Light SourceLED
- CCT/Color2700K3000K3500K4000K
- CRI90
- Watt(Approx)5 W/Ft8 W/Ft10 W/Ftcustom
- Lumens(Approx)229 Lm/Ft356 Lm/Ft422 Lm/Ftcustom
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VDALILutron Hi-lume EcoSystem (LDE1)
- Controls/NetworkLutron®EthernetnLight®Casambi
- Power/VoltageIntegralUNV 120-277V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesETLMade in USABAA
- EnvironmentDamp
- Mounting TypePendant
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeTRAZO
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
