CTL19-C. Mini Stealth Wall Lighter Mono-Point Canopy Mount Luminaire. by ConTech Lighting, Leviton

ConTech Lighting (Leviton)

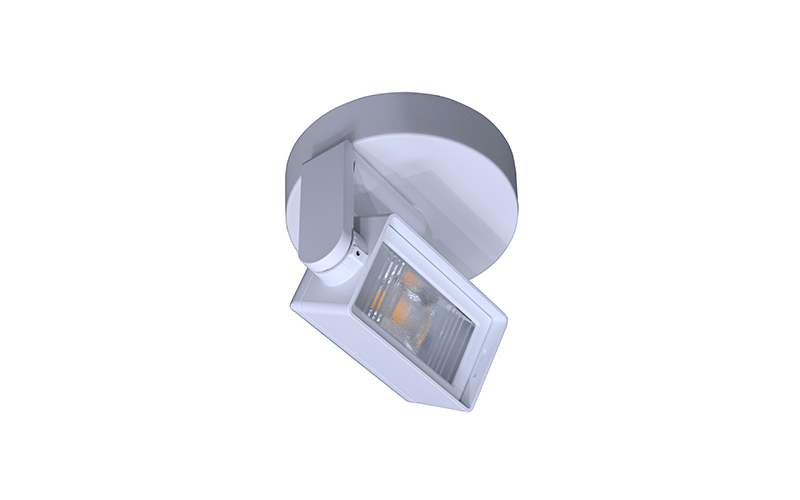

CTL19-C. Mini Stealth Wall Lighter Mono-Point Canopy Mount Luminaire.

Configure

Add to project

ConTech Lighting. CTL19-C. Mini Stealth Wall Lighter Mono-Point Canopy Mount Luminaire.

RESOURCES

DESCRIPTION

Smooth wide beam provides excellent uniformity, well suited for any wall lighting application
Cast and finned aluminum heatsink thermally engineered to provide optimal heat dissipation, ensuring long life and consistant performance
Mono-point canopy housing constructed of cast aluminum, may be ceiling or wall mounted
Lockable, precision aiming adjustment: 360°+ aiming horizontal and 220° vertical rotation
Available in 2700K, 3000K, 3500K and 4000K; 80 CRI minimum, 83 Typical. High 90+ CRI available.
Excellent fixture-to-fixture color consistency within a 3-step MacAdam Ellipse tolerance
Dimming is available and allows smooth illumination down to 1% utilizing Lutron Hi Lume or Lutron EcoSystem driver options; for additional information, consult factory
Accessory Holder, Barn Doors, Snoot and Visor will accept up to two (2) LF59 Lenses or FA-62 Louvers
cCSAus Certified to UL Standards
Suitable for dry locations
ENERGY STAR® Certified at 120V and 277V
DLC Listed at 120V only

MORE DESCRIPTION

SPECIFICATIONS

Dimensions
W: 2.55"
L: 4.61"
H: 5 3/4"
Light Source
LED
CCT/Color
2700K3000K3500K4000K
CRI
80 90
Watt^(Approx)
14 W19 W28 W35 W
Lumens^(Approx)
1571 Lm2213 Lm3128 Lm3703 Lm
Optics
DirectGeneral Diffused
Adjustable
Adjustable

Dimming
Dim to 3-10%Dim to 1%TRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron Hi-lume EcoSystem (LDE1)
Controls/Network
Power/Voltage
IntegralUNV 120-277V
Integral Emergency
Lumen Maintenance
50000 h
Certificates
UL/CULDLC*Energy Star*Declare
Environment
Mounting Type
Monopoint
Housing
Housing Depth

SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
