ConTech Lighting (Leviton)

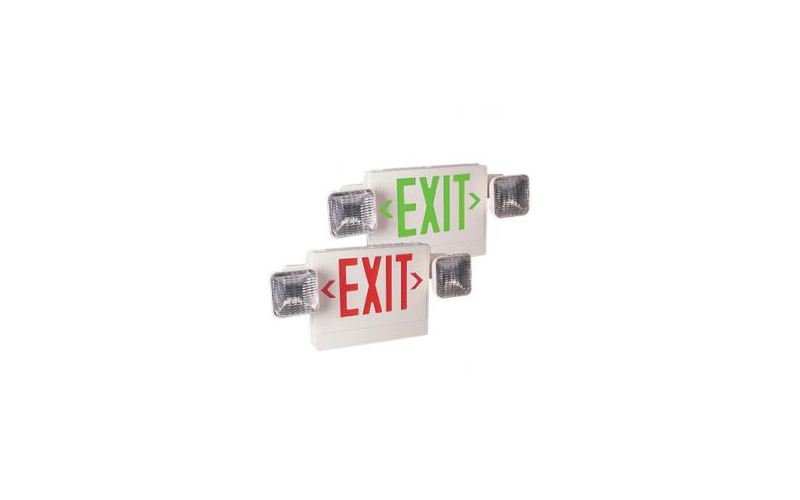

EX2H. LED Exit/Emergency Light Combination.
Configure
Add to project
RESOURCES
DESCRIPTION
- Injection molded thermoplastic ABS housing; UL 94V-0 flame rating
- Two fully adjustable, glare-free square light heads for emergency light
- Letters are 6" high with a 3/4" stroke; single or double faced configuration
- Battery Back-Up with LED indicator light and push button test switch
- Wall or ceiling mount with simple twist-and-lock action
- Red or green lettering; white or black housing
- ULus listed; meets UL924 and NFPA101
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsL: 21 5/8"H: 10 1/8"
- Light SourceLED
- CCT/Color
- CRI
- Watt(Approx)15 W
- Lumens(Approx)
- OpticsDirectGeneral DiffusedDirect View
- AdjustableAdjustable
- Dimming
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral EmergencyEM Integral
- Lumen Maintenance
- CertificatesUL/CUL
- Environment
- Mounting TypeCeiling SurfaceWall Surface
- Housing
- Housing Depth
