ConTech Lighting (Leviton)

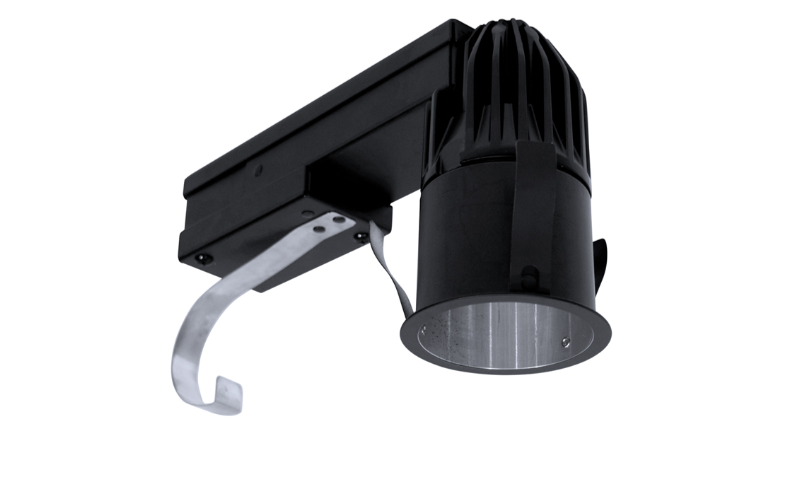

R2RM. 2'' Static White LED Downlight: New Construction and Remodel Housing.
 Configure
 Add to project
ConTech Lighting. R2RM. 2'' Static White LED Downlight: New Construction and Remodel Housing.
ConTech Lighting. R2RM. 2'' Static White LED Downlight: New Construction and Remodel Housing.
RESOURCES
DESCRIPTION
  • LED Series 05 (8W/800lm) and 1 (10W/1100lm) are Insulated Ceiling (IC), Stopaire housings; thermally protected for use in applications with direct contact with insulation materials
  • LED Series 2 (14W/1400lm) is a Non-Insulated Ceiling (Non-IC), Stopaire housing, requiring minimum 3" clearance around housing from insulation material. Thermal protection provided in case of improper insulation use.
  • Three spring steel friction springs provide secure support in ceiling thicknesses from 1/2" - 1". NOTE: Certain regions require the use of a housing mounting frame in conjunction with the R2RM housing. The NCF1 new construction mounting frame should be specified when required (ordered separately).
  • Available in 2700K, 3000K, 3500K and 4000K in both 83 and 90+ CRI, also available in 3000K 90+ CRI Crisp White
  • Crisp White LED option delivers 90+ color rendering with additional violet wavelengths that enhance white visibility
  • Precision TIR Optics produce 12°, 27°, 40°, and 65° beam distributions. Optics are interchangeable and can be field replaced.
  • The Wall Wash housing/trim combination utilizes a unique angled TIR optic mounted to the trim to create a smooth, uniform beam distribution. Wall Wash housing is dedicated for use only with Wall Wash trim. There is no interchangeability with other housings or optics.
  • All R2 downlights are available for non-dimming and dimming applications
  • cCSAus Certified using U.S. (UL) and Canadian (CSA) Standards
  • Housings with S, M, F, WF beam distributions are suitable for wet locations with any trim; Wall Wash (WW) housing is only suitable for wet locations with CTR2323L trims
  • Series 05, 1 and 2 in S, M and F beam distributions are ENERGY STAR® Certified with CST2322L and CST2322LSQ trims; WF and WW beam distributions are not ENERGY STAR® Certified
  • Lutron driver option is not ENERGY STAR® Certified
  • Conforms to Washington State Energy Code for low air infiltration; tested in accordance with ASTM E283
  • CP housings are Chicago Plenum CCEA listed
  • R2RM130KCMVDF-CP Housing with CST2322L-CLR trim can be used to comply with 2016 Title 24 JA8 Part 6 high efficacy LED light source requirements
  • Assembled in the USA
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 3 5/32"
    L: 3 5/32"
  • Light Source
    LED
  • CCT/Color
    2700K3000K3500K4000K
  • CRI
    83 90
  • Watt(Approx)
    8 W10 W14 W
  • Lumens(Approx)
    800 Lm1100 Lm1400 Lm
  • Optics
    DirectNarrowMediumFloodWide FloodAsymmetric/Wash
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%TRIAC/Forward/Leading0-10VLutron Hi-lume EcoSystem (LDE1)
  • Controls/Network
  • Power/Voltage
    IntegralUNV 120-277V
  • Integral Emergency
  • Lumen Maintenance
    50000 h
  • Certificates
    CSAT24*Energy Star*
  • Environment
    Damp
  • Mounting Type
    Ceiling RecessedDrywallT-Grid Ceiling
  • Housing
    New ConstructionChicago PlenumRemodelRemodel IC
  • Housing Depth
    5 3/8 ''
