R4IC. 4'' Insulated Ceiling/IC Rated Downlight. by ConTech Lighting, Leviton

ConTech Lighting (Leviton)

R4IC. 4'' Insulated Ceiling/IC Rated Downlight.

Configure

Add to project

ConTech Lighting. R4IC. 4'' Insulated Ceiling/IC Rated Downlight.

RESOURCES

DESCRIPTION

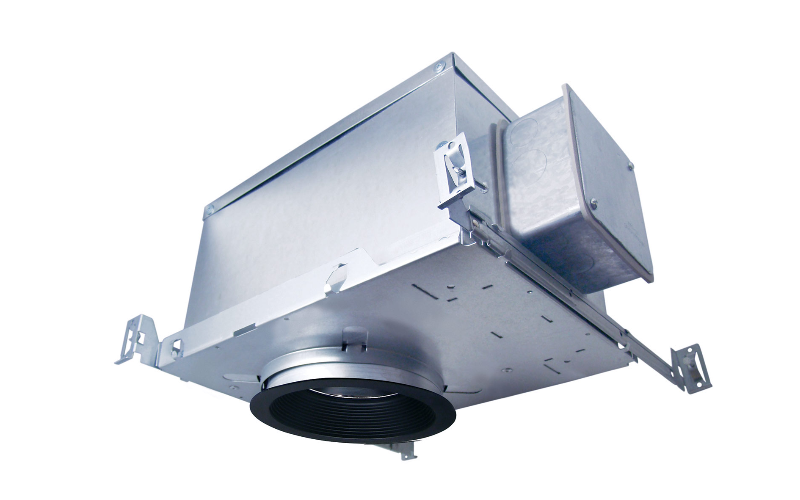

Specification Grade Round 16 Gauge Galvanized Steel Insulated Ceiling (IC)/StopAire™ Housing with Die-Cast Aluminum Heat Sink
For use in applications with direct contact with insulation materials
2700K, 3000K, 3500K and 4000K CCTs; 80 CRI min., 83 typical; high 90+ CRI available
All R4 Downlights are available for non-dimming and dimming applications; for compatible Dimmers, refer to the Dimming Specification Sheet
Flanged or Trimless Specification Grade Trims available; trimless options require use of a Mud Frame (MF4, ordered separately)
Trimless options cannot be used on Remodel Style Housings (R4RM) or with RSA4L Slope Ceiling Adapters
cCSAus Certified to UL Standards; Suitable for Damp Locations
Conforms to Washington State Energy Code (WSEC) for Low Air Infiltration; tested in accordance with ASTM E283 (2.0 CFM or less)
ENERGY STAR® Certified:
All wattage/lumen options are ENERGY STAR® Certified
ENERGY STAR® Certified Trims: C4322-PL, CN4322-PL, C4322-WHT, CN4322-WHT, C4322-CLR and CN4322-CLR (all beam distributions); –C (Clear Lens) and –SL (Sandblasted Lens) Wet Location approved trim options are not ENERGY STAR® Certified
347V Option, Lutron and eldoLED Dimming Options are not ENERGY STAR® Certified
Assembled in the USA

MORE DESCRIPTION

SPECIFICATIONS

Dimensions
Light Source
CCT/Color
CRI
Watt^(Approx)
Lumens^(Approx)
Optics
Adjustable

Dimming
Controls/Network
Power/Voltage
Integral Emergency
Lumen Maintenance
Certificates
Environment
Mounting Type
Housing
Housing Depth

SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.

R4IC

Lead time Cost —
CONFIGURATOR

Description:

DESCRIPTION

DIMENSIONS

LIGHT SOURCE

WATT/LUMENS

POWER/CONTROLS

i You reconfigured the product. To remove this message please update you custom description.

Marks unavailable product configuration, refer to manufacturer’s documentation for details

BUILD CATALOG NUMBER

PRODUCT DESCRIPTION
—

Specification Grade Round 16 Gauge Galvanized Steel Insulated Ceiling (IC)/StopAire™ Housing with Die-Cast Aluminum Heat Sink
For use in applications with direct contact with insulation materials
2700K, 3000K, 3500K and 4000K CCTs; 80 CRI min., 83 typical; high 90+ CRI available
All R4 Downlights are available for non-dimming and dimming applications; for compatible Dimmers, refer to the Dimming Specification Sheet
Flanged or Trimless Specification Grade Trims available; trimless options require use of a Mud Frame (MF4, ordered separately)
Trimless options cannot be used on Remodel Style Housings (R4RM) or with RSA4L Slope Ceiling Adapters
cCSAus Certified to UL Standards; Suitable for Damp Locations
Conforms to Washington State Energy Code (WSEC) for Low Air Infiltration; tested in accordance with ASTM E283 (2.0 CFM or less)
ENERGY STAR® Certified:
All wattage/lumen options are ENERGY STAR® Certified
ENERGY STAR® Certified Trims: C4322-PL, CN4322-PL, C4322-WHT, CN4322-WHT, C4322-CLR and CN4322-CLR (all beam distributions); –C (Clear Lens) and –SL (Sandblasted Lens) Wet Location approved trim options are not ENERGY STAR® Certified
347V Option, Lutron and eldoLED Dimming Options are not ENERGY STAR® Certified
Assembled in the USA
