Cyclone (Acuity Brands Lighting)

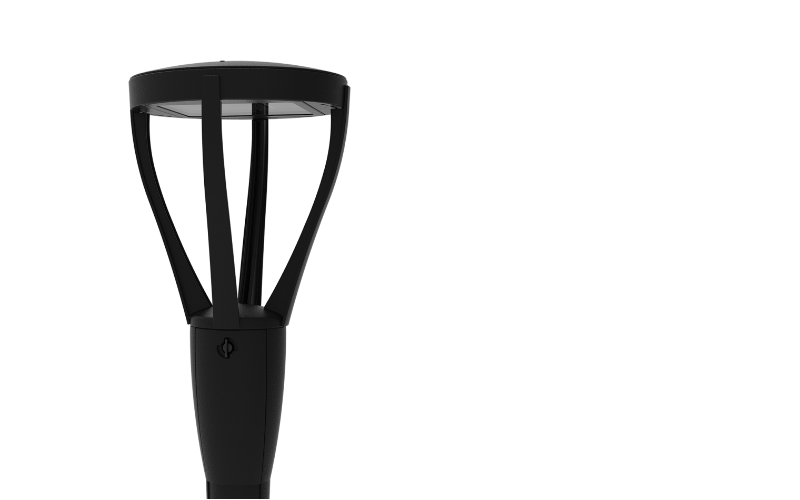

CLE17T4D. AZALEA POST TOP.
Configure
Add to project
RESOURCES
DESCRIPTION
The Azalea pole-top luminaire, fitted with an ultra-efficient LED optical system, provides unequaled results on the surfaces to be lit.
Conceived with a circular heat sink, a utility comparable fitter and a superior glass lens, Azalea will furthermore offer remarkable efficiency.
Conceived with a circular heat sink, a utility comparable fitter and a superior glass lens, Azalea will furthermore offer remarkable efficiency.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 17"L: 17"H: 35"
- Light SourceLED
- CCT/Color3000K4000K
- CRI70
- Watt(Approx)22.8 W33.4 W43.8 W55.1 W63.5 W85.3 W110.9 W129.7 W
- Lumens(Approx)2945 Lm4211 Lm5431 Lm6605 Lm7533 Lm10057 Lm13091 Lm14813 Lm
- OpticsDirectType IType IIType IIIType IVType V
- Adjustable
- DimmingDim to 3-10%Step Dim0-10V
- Controls/NetworkIntegral Sensor
- Power/VoltageIntegralUNV 120-277V120V208V220-240V277VUNC 347-480V347V480V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesRoHS
- EnvironmentIP66Marine
- Mounting TypePole/Post Top
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeCLE17T4D
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
