Cyclone (Acuity Brands Lighting)

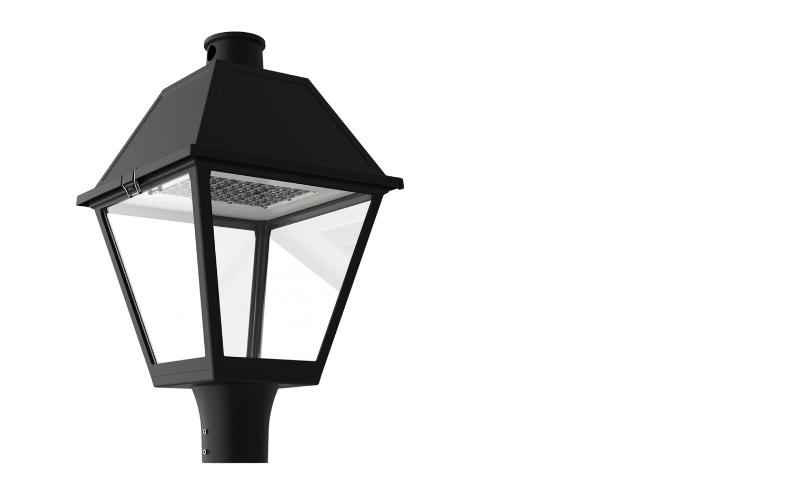

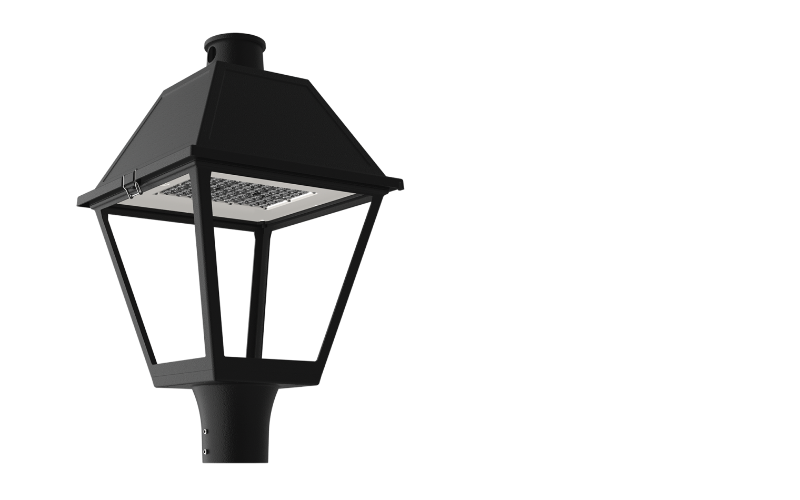

HUDT4A. HUDSON POST TOP.
Configure
Add to project
RESOURCES
DESCRIPTION
Hudson offers elegant, traditional lantern styling combined with leading-edge functionality and multiple uniform light distribution patterns.
Suitable for a wide variety of street, park, promenade, boardwalk, and civic space applications where a historic look and atmosphere is desired.
Suitable for a wide variety of street, park, promenade, boardwalk, and civic space applications where a historic look and atmosphere is desired.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 17 3/4"L: 17 3/4"H: 21 3/4"
- Light SourceLED
- CCT/Color3000K4000K
- CRI70
- Watt(Approx)22.8 W33.4 W43.8 W55.1 W63.5 W85.3 W110.9 W129.7 W
- Lumens(Approx)2986 Lm4269 Lm5506 Lm6696 Lm7637 Lm10197 Lm13274 Lm15019 Lm
- OpticsDirectType IType IIType IIIType IVType V
- Adjustable
- DimmingDim to 3-10%Step Dim0-10V
- Controls/NetworkIntegral Sensor
- Power/VoltageIntegralUNV 120-277V208V220-240V277V347V480V
- Integral Emergency
- Lumen Maintenance100000 h
- CertificatesRoHS
- EnvironmentIP66Marine
- Mounting TypePole/Post Top
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeHUDT4A
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
