Day-Brite CFI (Genlyte Solutions)
2CAX. ClearAppeal 2x4 Recessed up to 7400 lumens.
 Configure
 Add to project

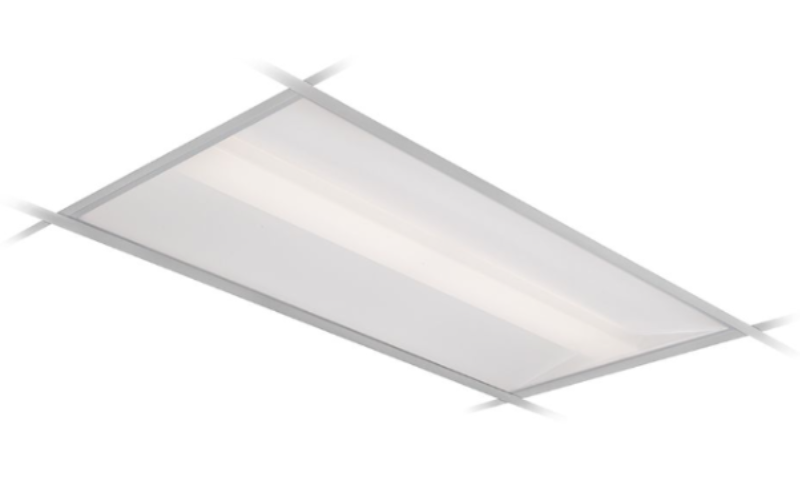

Day-Brite. 2CAX. ClearAppeal 2x4 Recessed up to 7400 lumens - standard & wireless controls.
Day-Brite. 2CAX. ClearAppeal 2x4 Recessed up to 7400 lumens - standard & wireless controls.
RESOURCES
DESCRIPTION
Day-Brite / CFI ClearAppeal LED recessed is a fully luminous aperture luminaire providing modern appeal to architectural spaces. Featuring a regressed aesthetic
with balanced glare gradient, ClearAppeal delivers high performing even illumination and high visual comfort. Its architectural style, coupled with controls options,
makes ClearAppeal an ideal choice for applications such as office, institutional, and healthcare, where energy savings and customized effect are desired.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 2 Ft
    L: 4 Ft
  • Light Source
    LED
  • CCT/Color
    3500K4000K5000K
  • CRI
    80
  • Watt(Approx)
    19.8 W20.3 W20.7 W21 W22.1 W
  • Lumens(Approx)
    4284 Lm4832 Lm3799 Lm4376 Lm5393 Lm6000 Lm7342 Lm
  • Optics
    DirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%Step DimDALILutron Hi-lume EcoSystem (LDE1)
  • Controls/Network
    BluetoothWireless DimmingIntegral Sensor
  • Power/Voltage
    IntegralUNV 120-277V347V
  • Integral Emergency
    EM Integral
  • Lumen Maintenance
    85000 h
  • Certificates
    ETLDLC*Declare
  • Environment
    Antimicrobial FinishDampHealthcare GeneralCorrosion Resistant
  • Mounting Type
    Ceiling RecessedT-Grid Ceiling
  • Housing
    ICChicago Plenum
  • Housing Depth
    3 15/16 ''
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
