Day-Brite (Signify)

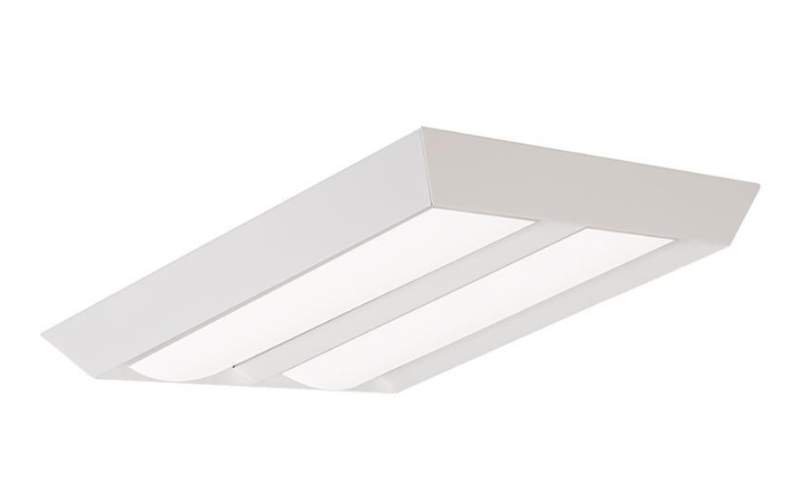

2SDL. DuaLED 2x2 Surface 2100, 2700, 3400, 3800, or 4400 lumens.
Configure
Add to project
RESOURCES
DESCRIPTION
The Day-Brite / CFI DuaLED surface LED is a highly efficient, visually comfortable, architecturally styled surface LED luminaire designed with a minimalistic strategy to achieve sustainable objectives. Its clean modern design offers a fresh variation on the popular dual chamber theme and provides architectural styling compatible with virtually any area
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 2 FtL: 2 FtH: 3"
- Light SourceLED
- CCT/Color3000K3500K4000K5000K
- CRI80
- Watt(Approx)22.5 W29.3 W32.9 W40.9 W
- Lumens(Approx)2100 Lm2671 Lm3450 Lm3849 Lm4670 Lm
- OpticsDirectGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Step Dim0-10VDALI
- Controls/NetworkWireless DimmingIntegral Sensor
- Power/VoltageIntegralUNV 120-277V347V
- Integral Emergency
- Lumen Maintenance70000 h
- CertificatesETLDLC*
- EnvironmentAntimicrobial FinishDampHealthcare GeneralCorrosion Resistant
- Mounting TypeCeiling Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeSDL-22
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
