Designplan

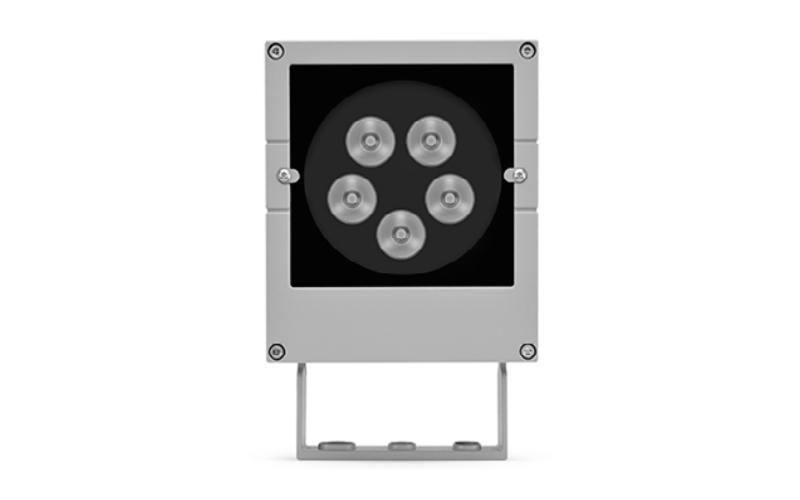

Case Medium 6.3'' x 3.4'' x 9.3'' LED Floodlight IP65.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
Case is a family of square outdoor floodlights for installation on a façade or wall. There are three sizes, Micro, Medium and Maxi that come in 2 color temperatures, 3 optic options and 3 standard finishes.
Short and Medium brackets come with the fixture as standard. Extended bracket sold separately.
Short and Medium brackets come with the fixture as standard. Extended bracket sold separately.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3.37"L: 6.3"H: 9.25"
- Light SourceLED
- CCT/Color3000K4000K
- CRI80
- Watt(Approx)8 W
- Lumens(Approx)720 Lm
- OpticsDirectNarrowFlood
- AdjustableAdjustable
- DimmingDim to 3-10%0-10V
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance
- CertificatesETL
- EnvironmentIP65
- Mounting TypeTrunnion
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead time10100P-MEDIUM
