Designplan

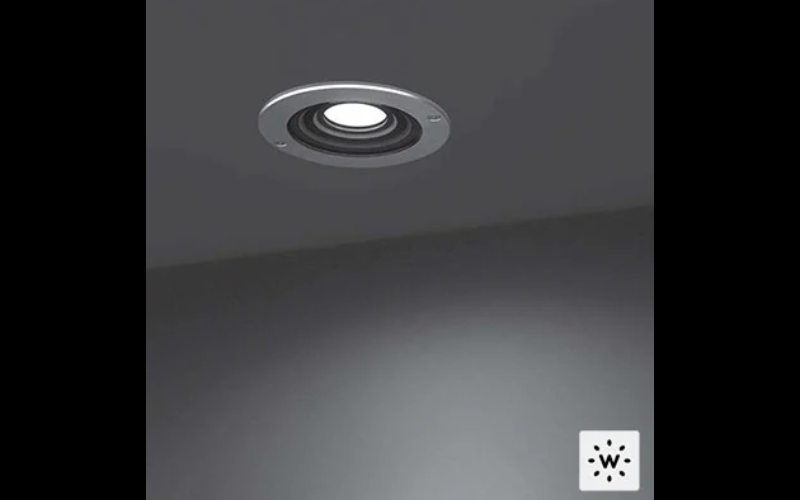

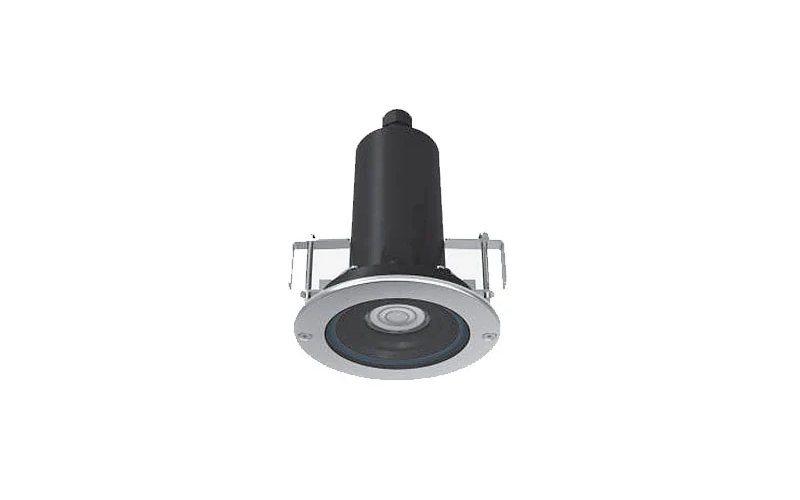

Cielo Mini COB LED Recessed Downlight IP67.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
Cielo Mini is a round, IP67-rated, recessed downlight available in 6 versions and suitable for outdoor installation. Cielo Mini COB is an 8W version with a CREE CXB1304 COB LED. Available in 3 color temperatures, 3 optics options and a stainless steel finish.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 6.06"L: 6.06"
- Light SourceLED
- CCT/Color2700K3000K4000K
- CRI
- Watt(Approx)8 W
- Lumens(Approx)620 Lm600 Lm580 Lm
- OpticsDirectMediumFloodWide Flood
- Adjustable
- Dimming
- Controls/Network
- Power/VoltageIntegral120V
- Integral Emergency
- Lumen Maintenance
- CertificatesETL
- EnvironmentIP67
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingNew Construction
- Housing Depth8.03 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead time701301P
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
