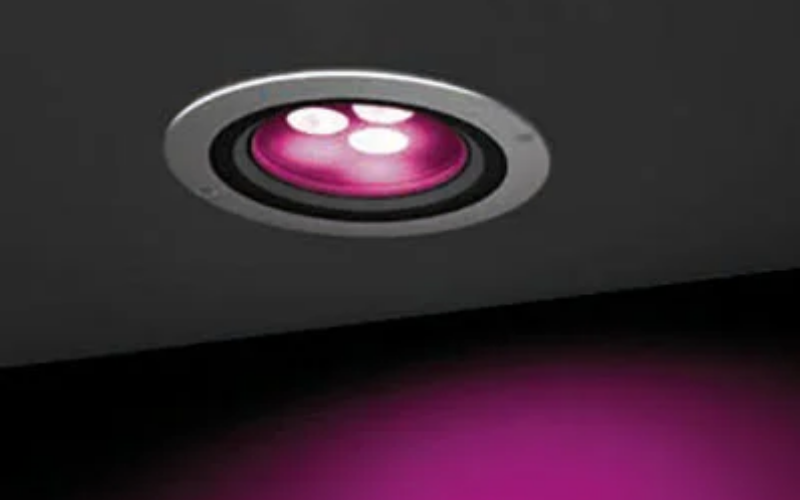

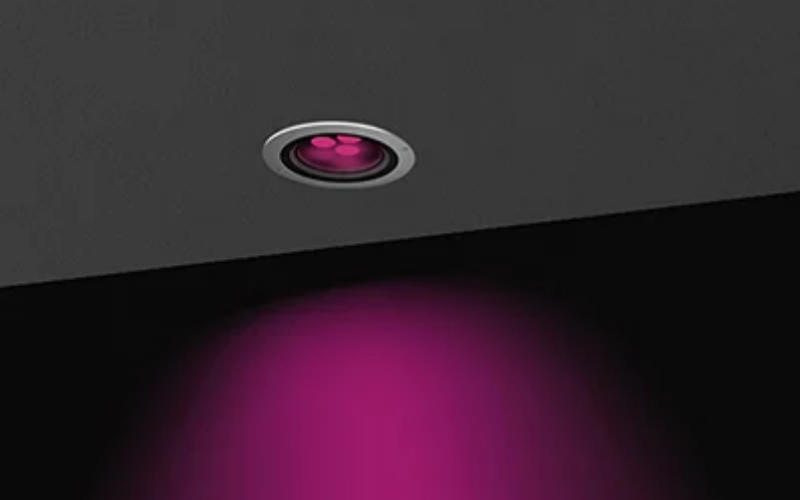

Cielo Medium DMX RGBW LED Recessed Downlight IP67.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION
Cielo Medium is a round, IP67-rated, recessed downlight available in 4 versions and suitable for outdoor installation. Cielo Medium HP DMX RGBW is a 14W version with a CREE “XML” RGBW LED. Available in RGBW with 3 optic options and a stainless steel finish.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 8.62"L: 8.62"
- Light SourceLED
- CCT/ColorRGBW
- CRI
- Watt(Approx)14 W
- Lumens(Approx)480 Lm456 Lm435 Lm
- OpticsDirectNarrowMediumFlood
- Adjustable
- DimmingDim to 3-10%Dim to 1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10VLutron Hi-lume Eco (L3DAE)Lutron Hi-lume 3-wire (L3DA3W)
- Controls/Network
- Power/VoltageRemoteUNV 120-277V
- Integral Emergency
- Lumen Maintenance
- CertificatesETL
- EnvironmentIP67
- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingNew Construction
- Housing Depth10.47 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead time701309P
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
