Altopiano 1.1 Recessed LED Downlight IP66.
Configure
Add to project
RESOURCES
-
SPEC SHEET
-
WHERE TO BUY
-
MANUFACTURER'S PAGE
-
ASK MANUFACTURER
DESCRIPTION

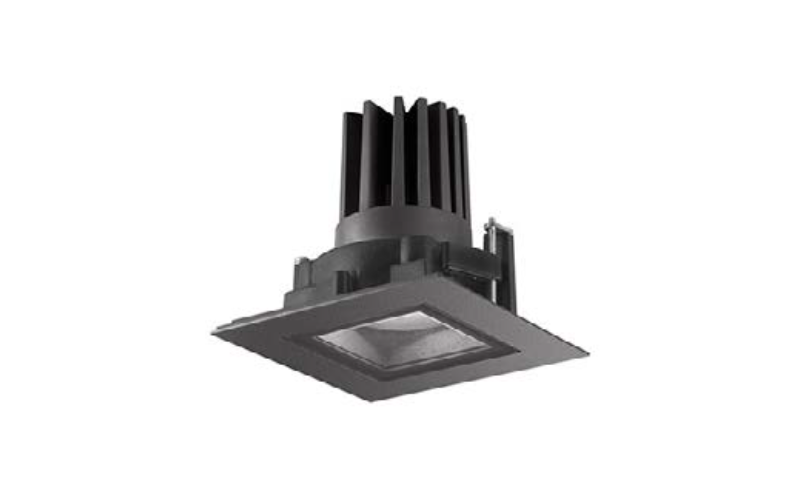

Altopiano is a family of compact, recessed outdoor downlights available in 3 sizes, round or square, perfectly suitable for hospitality and residential sectors, as well as steam rooms and natatoriums, NOT saunas. Available in static white, as well as RGBW mixing and Dim to Warm. Altopiano 1.1 is the 3.9” square, static white version.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3.86"L: 3.86"
- Light SourceLED
- CCT/Color2400K or less2700K3000K4000K
- CRI80 90
- Watt(Approx)8 W
- Lumens(Approx)588 Lm
- OpticsDirectGrazingMediumFloodWide FloodGeneral Diffused
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%Non-DimTRIAC/Forward/LeadingELV/Reverse/Trailing0-10V
- Controls/Network
- Power/VoltageRemoteUNV 120-277V120V
- Integral Emergency
- Lumen Maintenance60000 h
- CertificatesETL
- EnvironmentIP66

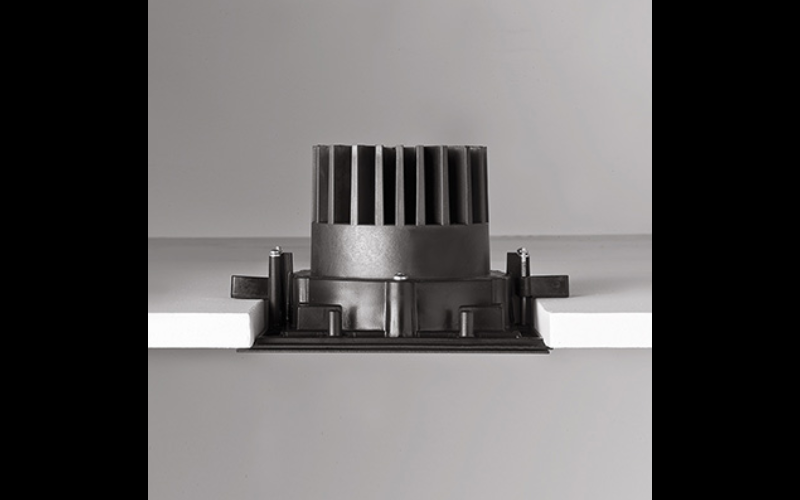

- Mounting TypeCeiling RecessedDrywallT-Grid Ceiling
- HousingNew Construction
- Housing Depth3.54 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeAP1110
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
