Designplan
Orlo LED Bollard, Integral, 0-10V Dim to Off, IP66.
 Configure
 Add to project
Designplan. Orlo LED Bollard, Integral, 0-10V Dim to Off, IP66.
Designplan. Orlo LED Bollard, Integral, 0-10V Dim to Off, IP66.
Designplan. Orlo LED Bollard, Integral, 0-10V Dim to Off, IP66.
Designplan. Orlo LED Bollard, Integral, 0-10V Dim to Off, IP66.
RESOURCES
DESCRIPTION

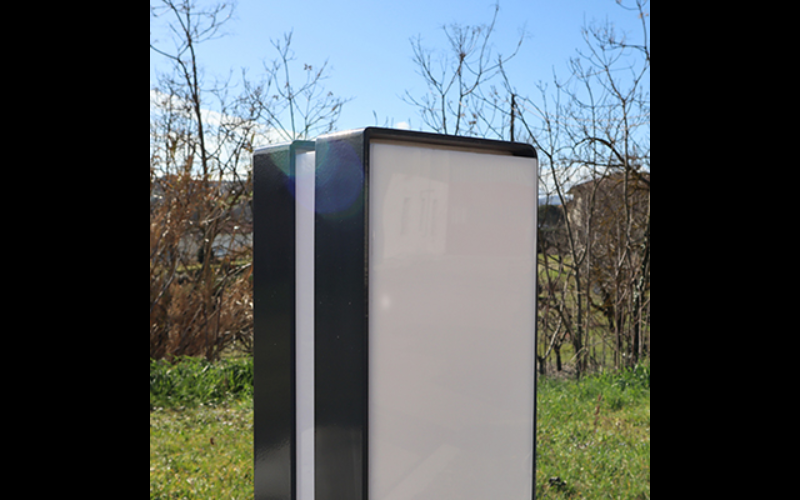

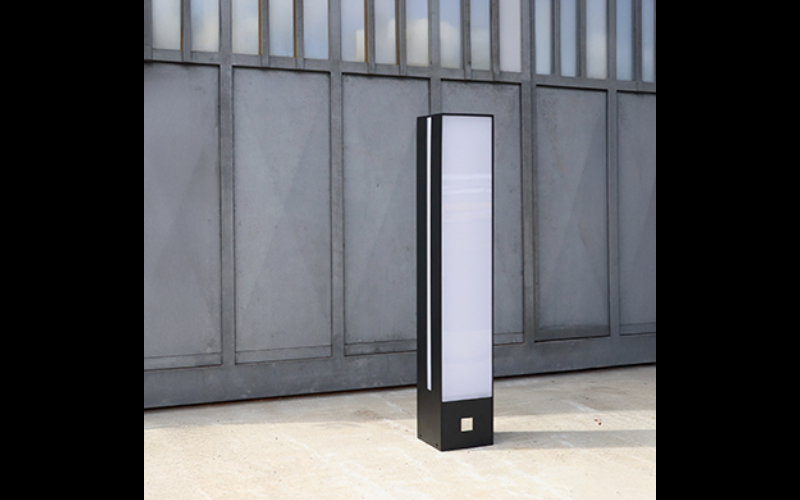

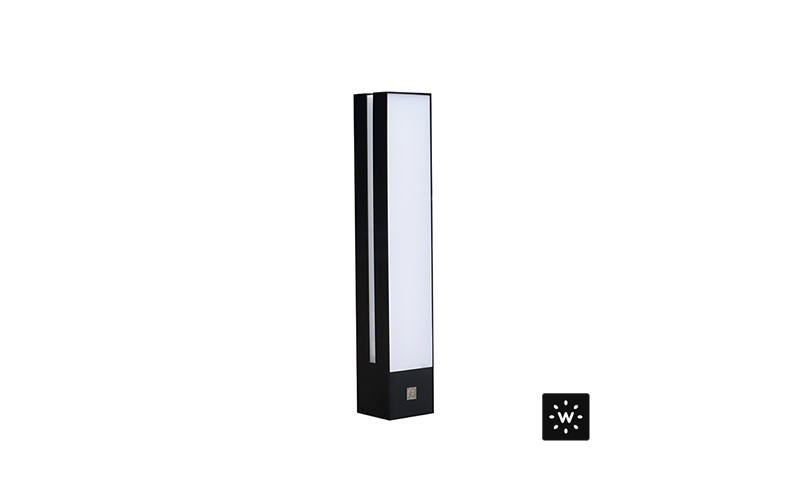

The Orlo bollard is a sophisticated outdoor fixture made of stainless steel and PMMA acrylic that is 47.2 inches and suitable for lighting urban areas, parks, walkways or driveways. It is available 32W total, 0-10V Dim to Off and a standard iron gray finish.
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 7.87"
    L: 7.87"
    H: 47.24"
  • Light Source
    LED
  • CCT/Color
    3000K
  • CRI
    80
  • Watt(Approx)
  • Lumens(Approx)
  • Optics
    DirectGeneral Diffused
  • Adjustable
  • Dimming
    Dim to <1%0-10V
  • Controls/Network
  • Power/Voltage
    Integral
  • Integral Emergency
  • Lumen Maintenance
    50000 h
  • Certificates
  • Environment
    IP66
  • Mounting Type
    Bollard
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
